端云一体化开发-计算十二生肖-云数据库 原创 精华

@toc

1. 前言

    上帖子使用云函数端云一体化开发计算十二生肖，此贴使用云数据库端云一体化开发计算十二生肖，在DevEco Studio可以完成端侧代码开发和云侧代码开发，一键部署云数据库，效果与之前使用云函数一样，计算获取方式不同。

2. 真机效果

3. 讲解

    创建端云一体化项目，这里就不介绍的，创建、部署云数据库官方详细教程 开发云数据库 端云一体化项目结构和之前不一样，多了CloudProgram模块, 下面介绍项目开发，先从云侧开发开始，再到端侧开发。

4. 云侧开发

4.1 介绍云数据库目录结构

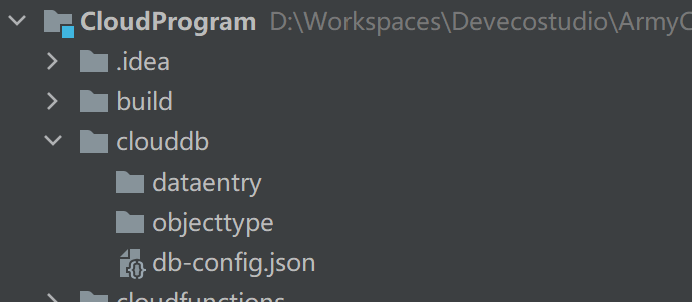

    展开CloudProgram模块，展开clouddb目录，dataentry目录是存储数据条目文件，objecttype目录是存储对象类型文件，db-config.json自动生成，内容包含云数据库配置，目录结构如下图：

4.2 定义对象类型

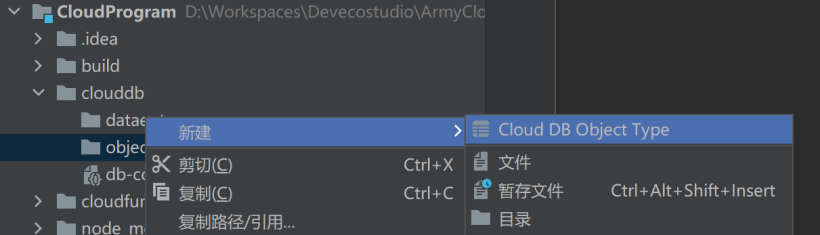

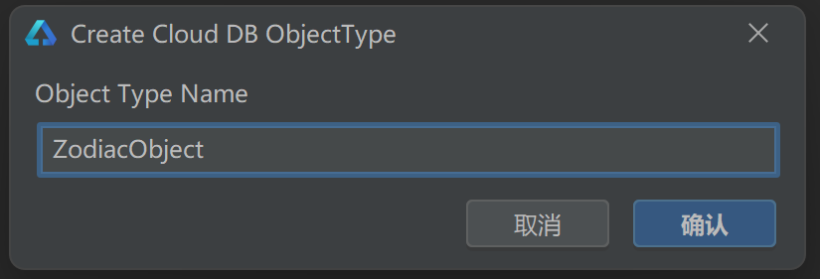

     右击objecttype目录，创建对象类型

{
  "fields": [
    {
      "belongPrimaryKey": true,
      "fieldName": "idx",
      "fieldType": "Integer",
      "isNeedEncrypt": false,
      "notNull": true
    },
    {
      "belongPrimaryKey": false,
      "fieldName": "zodiacName",
      "fieldType": "String",
      "isNeedEncrypt": false,
      "notNull": false
    }
  ],
  "indexes": [
    {
      "indexName": "idxIndex",
      "indexList": [
        {
          "fieldName": "idx",
          "sortType": "ASC"
        }
      ]
    },
    {
      "indexName": "zodiacIndex",
      "indexList": [
        {
          "fieldName": "zodiacName",
          "sortType": "DESC"
        }
      ]
    }
  ],
  "objectTypeName": "ZodiacObject",
  "permissions": [
    {
      "rights": [
        "Read"
      ],
      "role": "World"
    },
    {
      "rights": [
        "Read",
        "Upsert"
      ],
      "role": "Authenticated"
    },
    {
      "rights": [
        "Read",
        "Upsert",
        "Delete"
      ],
      "role": "Creator"
    },
    {
      "rights": [
        "Read",
        "Upsert",
        "Delete"
      ],
      "role": "Administrator"
    }
  ]
}

4.3 定义数据条目

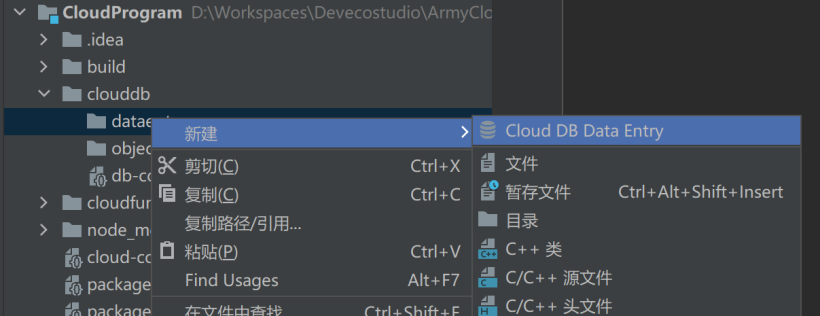

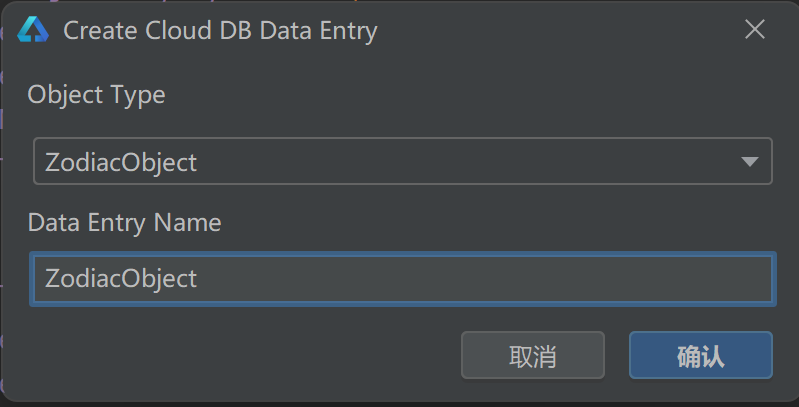

     右击dataentry目录，创建数据条目

{
  "cloudDBZoneName": "cloudDBZoneZodiac",
  "objectTypeName": "ZodiacObject",
  "objects": [
    {
      "idx": 0,
      "zodiacName": "猴"
    },
    {
      "idx": 1,
      "zodiacName": "鸡"
    },
    {
      "idx": 2,
      "zodiacName": "狗"
    },
    {
      "idx": 3,
      "zodiacName": "猪"
    },
    {
      "idx": 4,
      "zodiacName": "鼠"
    },
    {
      "idx": 5,
      "zodiacName": "牛"
    },
    {
      "idx": 6,
      "zodiacName": "虎"
    },
    {
      "idx": 7,
      "zodiacName": "兔"
    },
    {
      "idx": 8,
      "zodiacName": "龙"
    },
    {
      "idx": 9,
      "zodiacName": "蛇"
    },
    {
      "idx": 10,
      "zodiacName": "马"
    },
    {
      "idx": 11,
      "zodiacName": "羊"
    }
  ]
}

4.4 部署云数据库

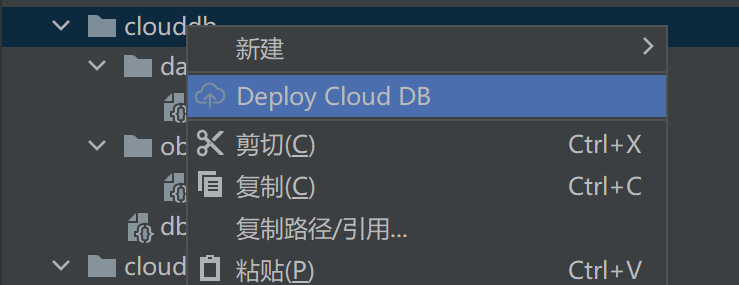

     部署云侧代码到AGC上，右击clouddb目录，选择Deploy Cloud DB， 自动部署到AGC上，如果提示没有登录，登录成功后，再操作一次部署。

4.5 导出文件格式

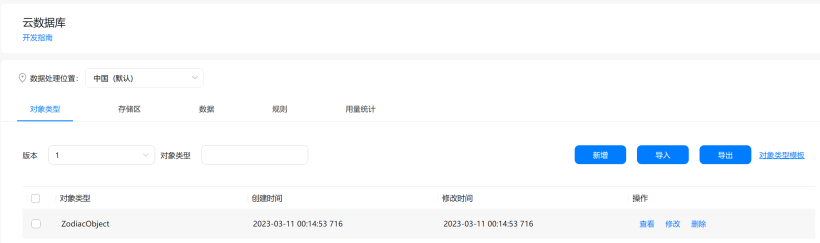

     4.5.1 登录到AGC->云数据库，进入当前项目的云数据库服务菜单，可分别在“对象类型”、“存储区”与“数据”页签查看到您刚刚部署的云数据库资源。

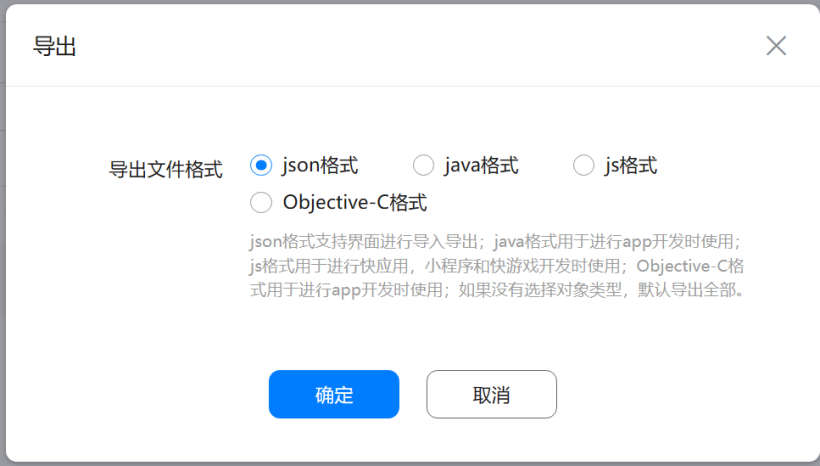

     4.5.2 导出json格式文件

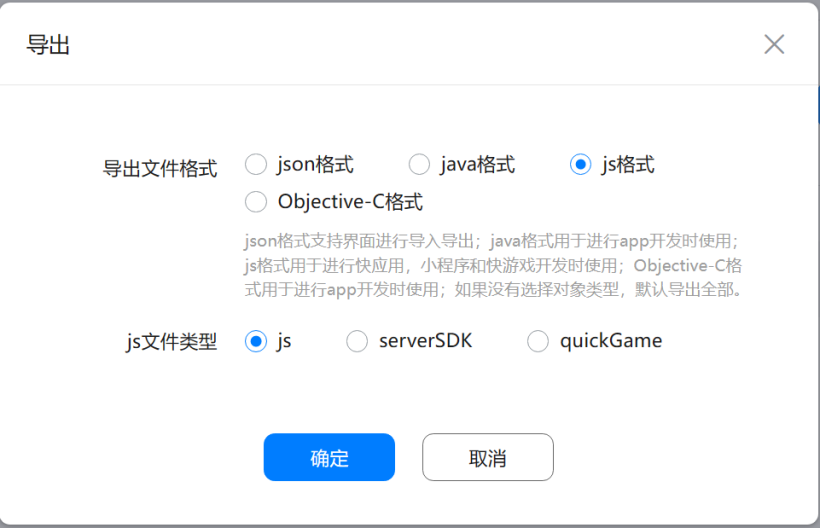

     4.5.3 导出js格式文件

     4.5.3 导出json文件和js文件，端侧使用到。

5. 端侧开发

5.1 端侧模块结构

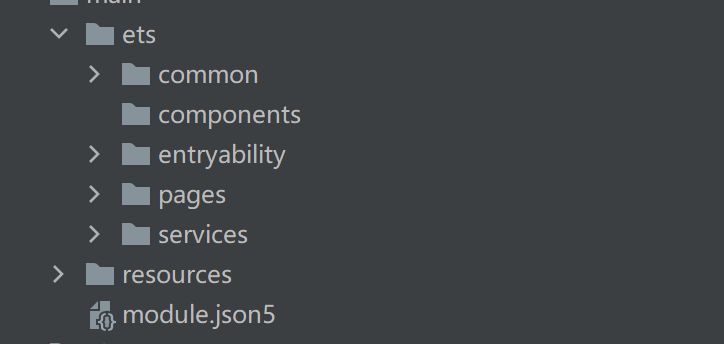

     先看一下端侧模块结构：

5.2 common目录

     common目录放一些公共的封装类，比如Log类； components目录放自定义组件；entryability是自动生成的，里面有一个EntryAbility类，包含生命周期；pages目录放UI布局页面；services目录放业务逻辑类，比如调用云侧接口。

5.3 services目录

     这里只介绍services目录的工作，先介绍如何和AGC连接上的，这里使用一个单独的文件来处理:
     5.3.1 services目录下AgcConfig.ts

import agconnect from '@hw-agconnect/api-ohos';
import "@hw-agconnect/core-ohos";
import "@hw-agconnect/auth-ohos";
import '@hw-agconnect/auth-types-ohos';

import { Log } from '../common/Log';

const TAG = "[AGCConfig]";

export function getAGConnect(context) {
    try {
        agconnect.instance().init(context);
        Log.info(TAG, "xx init AGC SDK success");
        return agconnect;
    }
    catch (err) {
        Log.error(TAG, "xx initAgcSDK failed" + err);
    }
}

     5.3.2 在services目录下创建app-schema.json文件，复制上面在AGC下载的json格式文件内容到app-schema.json里

{
	"schemaVersion": 1,
	"permissions": [{
		"permissions": [{
			"role": "World",
			"rights": ["Read"]
		}, {
			"role": "Authenticated",
			"rights": ["Read", "Upsert"]
		}, {
			"role": "Creator",
			"rights": ["Read", "Upsert", "Delete"]
		}, {
			"role": "Administrator",
			"rights": ["Read", "Upsert", "Delete"]
		}],
		"objectTypeName": "ZodiacObject"
	}],
	"objectTypes": [{
		"indexes": [{
			"indexName": "zodiacIndex",
			"indexList": [{
				"fieldName": "zodiacName",
				"sortType": "DESC"
			}]
		}, {
			"indexName": "idxIndex",
			"indexList": [{
				"fieldName": "idx",
				"sortType": "ASC"
			}]
		}],
		"objectTypeName": "ZodiacObject",
		"fields": [{
			"isNeedEncrypt": false,
			"fieldName": "idx",
			"notNull": true,
			"isSensitive": false,
			"belongPrimaryKey": true,
			"fieldType": "Integer"
		}, {
			"isNeedEncrypt": false,
			"fieldName": "zodiacName",
			"notNull": false,
			"isSensitive": false,
			"belongPrimaryKey": false,
			"fieldType": "String"
		}]
	}]
}

     5.3.3 在services目录下创建ZodiacObject.js文件，复制上面在AGC下载的js格式文件内容到ZodiacObject.js里

/*
 * Copyright (c) Huawei Technologies Co., Ltd. 2020-2020. All rights reserved.
 * Generated by the CloudDB ObjectType compiler. DO NOT EDIT!
 */

class ZodiacObject {
    constructor() {
        this.idx = undefined;
        this.zodiacName = undefined;
    }

    setIdx(idx) {
        this.idx = idx;
    }

    getIdx() {
        return this.idx;
    }

    setZodiacName(zodiacName) {
        this.zodiacName = zodiacName;
    }

    getZodiacName() {
        return this.zodiacName;
    }
}

ZodiacObject.className = 'ZodiacObject';

export {ZodiacObject}

     5.3.4 services目录下创建CloudDB.ts

import * as schema from './app-schema.json';
import { ZodiacObject } from './ZodiacObject'
import { AGConnectCloudDB, CloudDBZone, CloudDBZoneQuery } from '@hw-agconnect/database-ohos';
import { AGCRoutePolicy } from '@hw-agconnect/core-ohos';
import { getAGConnect } from './AgcConfig';


export class CloudDBService {
  private static ZONE_NAME: string = "cloudDBZoneZodiac"

  private static init(context: any): Promise<CloudDBZone> {
    return new Promise((resolve, reject) => {
      // 获取AGC连接
      getAGConnect(context);
      AGConnectCloudDB.initialize(context);

      AGConnectCloudDB.getInstance({
        context: context,
        agcRoutePolicy: AGCRoutePolicy.CHINA,
        objectTypeInfo: schema
      }).then((ret) => {
        return resolve(ret.openCloudDBZone(this.ZONE_NAME));
      }).catch((err) => {
        return reject(err);
      });
    })
  }

  public static query(context: any, year: number): Promise<ZodiacObject> {
    let idx = year%12;

    return new Promise((resolve, reject) => {
      const query = CloudDBZoneQuery.where(ZodiacObject).equalTo("idx", idx);
      this.init(context).then((ret) => {
        ret.executeQuery(query).then((ret) => {
          resolve(ret.getSnapshotObjects()[0]);
        })
      }).catch((err) => {
        reject(err);
      });
    })
  }
}

5.4 pages目录

    pages目录 Index.ts 这里是页面布局，上面看到的效果，就是这里实现的。

import { CloudDBService } from '../services/CloudDB';

@Entry
@Component
struct Index {
  // 存储选择年份
  @State year: number = 2022
  // 计算出来生肖
  @State born: string = "?"
  // 是否在计算中
  @State flag: boolean = false

  // 计算生肖
  getBorn() {
    // 标识为计算中
    this.flag = true;
    console.info('xx Page year: ' + this.year)
    // 封装参数
    let params = {
      "year": this.year
    }
    // 调用云数据库
    CloudDBService.query(getContext(this), this.year).then((res) => {
      console.info('xx cloud db result: ' + JSON.stringify(res));
      // 计算完成
      this.flag = false;
      // 结果赋值给生肖变量
      this.born = res.zodiacName;

    }).catch((err) => {
      // 计算完成
      this.flag = false;
      console.error('xx error: ', err && err.message);
    });
  }

  build() {
    Stack() {
      if (!this.flag) {
        Column({space: 20}) {
          Text('请选择年份')
            .fontSize(20)
            .fontWeight(FontWeight.Bold)

          // 选择年份
          Column() {
            Text(this.year + '')
              .fontSize(20)
              .fontWeight(FontWeight.Bold)
              .padding(10)
              .width(100)
              .border({ width: 1, radius: 8 })
          }
          .bindMenu([
            { value: '2006', action: () => {this.year = 2006; this.born = '?'} },
            { value: '2007', action: () => {this.year = 2007; this.born = '?'} },
            { value: '2008', action: () => {this.year = 2008; this.born = '?'} },
            { value: '2009', action: () => {this.year = 2009; this.born = '?'} },
            { value: '2010', action: () => {this.year = 2010; this.born = '?'} },
            { value: '2011', action: () => {this.year = 2011; this.born = '?'} },
            { value: '2012', action: () => {this.year = 2012; this.born = '?'} },
            { value: '2013', action: () => {this.year = 2013; this.born = '?'} },
            { value: '2014', action: () => {this.year = 2014; this.born = '?'} },
            { value: '2015', action: () => {this.year = 2015; this.born = '?'} },
            { value: '2016', action: () => {this.year = 2016; this.born = '?'} },
            { value: '2017', action: () => {this.year = 2017; this.born = '?'} },
            { value: '2018', action: () => {this.year = 2018; this.born = '?'} },
            { value: '2019', action: () => {this.year = 2019; this.born = '?'} },
            { value: '2020', action: () => {this.year = 2020; this.born = '?'} },
            { value: '2021', action: () => {this.year = 2021; this.born = '?'} },
            { value: '2022', action: () => {this.year = 2022; this.born = '?'} },
            { value: '2023', action: () => {this.year = 2023; this.born = '?'} },
            { value: '2024', action: () => {this.year = 2024; this.born = '?'} },
            { value: '2025', action: () => {this.year = 2025; this.born = '?'} }
          ])

          // 计算按钮操作
          Button('计算', {type: ButtonType.Normal, stateEffect: true})
            .fontSize(18)
            .borderRadius(8)
            .width(100)
            .margin({bottom: 20})
            .onClick(() => {
              // 根据年份计算生肖
              this.getBorn()
            })

            // 显示计算结果
            Text(`${this.year} 年生肖是  ${this.born}`)
              .fontSize(20)
              .fontWeight(FontWeight.Bold)
        }
        .width('100%')
        .height('100%')
        .padding({top: '33%'})
      } else {
        // 计算中
        LoadingProgress().color(Color.Blue)
          .backgroundColor(Color.Transparent)
      }
    }
  }
}

6. 总结

    由于调用云侧云数据库是异步的，不能马上返回结果，这里添加LoadingProgress组件，让用户知道在运行中，效果看得不是很明显，可能录制时，网速很快，LoadingProgress组件闪一下就不见了，如果遇到网络慢时，LoadingProgress就会一直转，直到云数据库返回响应时，再消失LoadingProgress。
