《调用鸿蒙硬能力：RN 集成 AI 语音、摄像头等原生模块指南》

一、鸿蒙原生能力接入架构

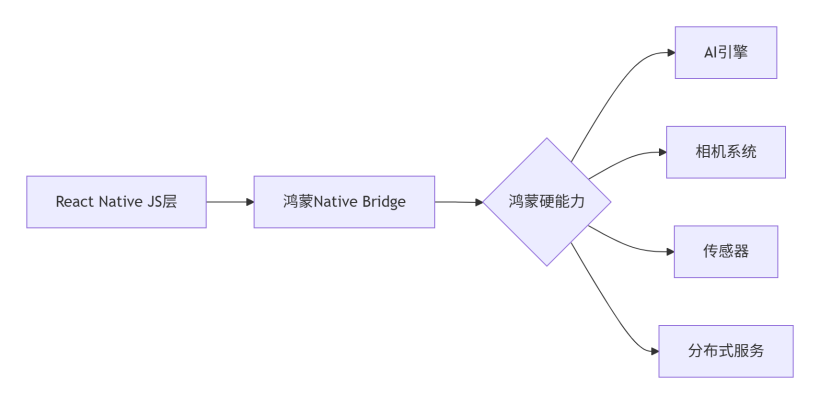

1.1 混合开发原理图

1.2 开发环境准备

安装鸿蒙RN桥接工具链

ohpm install @ohos/rn-bridge --save
ohpm install @ohos/hardware-adaptor --save-dev

验证环境

npx react-native check-harmony

二、AI语音集成方案

2.1 语音识别模块

// SpeechModule.ts
import { HarmonySpeech } from ‘@ohos/rn-ai’;

class VoiceRecognizer {
static startListening(options: {
language?: string;
punctuation?: boolean;
= {}) {

return HarmonySpeech.start({
  lang: options.language || 'zh-CN',
  enablePunctuation: options.punctuation || true,
  onResult: (text: string) => {
    DeviceEventEmitter.emit('onSpeechResult', { text });
  },
  onError: (error) => {
    console.error('识别错误:', error);

});

static stop() {

HarmonySpeech.stop();

}

2.2 语音合成实现

// TextToSpeech.ts
const ttsEngine = new HarmonySpeech.TTS({
volume: 0.9,
speed: 1.2,
pitch: 1.0
});

export async function speak(text: string) {
try {
await ttsEngine.synthesize(text, {
priority: ‘high’,
queueMode: ‘flush’
});
catch (err) {

console.error('合成失败:', err);

}

三、相机与图像处理

3.1 相机组件封装

// HarmonyCamera.tsx
import { View, findNodeHandle } from ‘react-native’;
import { HarmonyCameraView } from ‘@ohos/rn-camera’;

export default function CameraView() {
const cameraRef = useRef(null);

const takePhoto = async () => {
const result = await HarmonyCameraView.capture({
quality: ‘high’,
targetResolution: {
width: 1920,
height: 1080
});

return result.uri;

};

return (
<View style={styles.container}>
<HarmonyCameraView
ref={cameraRef}
style={styles.camera}
type=“back”
flashMode=“auto”
/>
</View>
);

3.2 实时图像分析

// ImageAnalyzer.ts
const analyzer = new HarmonyVision.ImageAnalyzer({
model: ‘object-detection-v3’,
accelerator: ‘npu’ // 使用NPU加速
});

export async function detectObjects(imageUri: string) {
const results = await analyzer.analyze(imageUri, {
confidenceThreshold: 0.7,
maxResults: 5
});

return results.map(item => ({
label: item.label,
confidence: item.confidence,
bounds: item.bounds
}));

四、传感器数据接入

4.1 设备运动监测

// MotionSensor.ts
import { HarmonySensors } from ‘@ohos/rn-sensors’;

const motionSensor = new HarmonySensors.Motion({
interval: ‘game’,
coordinateSystem: ‘device’
});

export function startMotionTracking(callback: (data: MotionData) => void) {
motionSensor.subscribe((data) => {
callback({
acceleration: data.acceleration,
rotationRate: data.rotationRate,
orientation: data.orientation
});
});

4.2 环境传感器集成

// Environment.ts
const envSensor = new HarmonySensors.Environment({
temperature: true,
humidity: true,
pressure: true
});

export function getAmbientData() {
return new Promise((resolve) => {
envSensor.getOnce((data) => {
resolve(data);
});
});

五、跨设备协同开发

5.1 分布式相机控制

// RemoteCamera.ts
import { DistributedDeviceManager } from ‘@ohos/rn-distributed’;

export class RemoteCameraController {
private deviceId: string;

constructor(targetDevice: string) {
this.deviceId = targetDevice;
async captureRemotePhoto() {

const result = await DistributedDeviceManager.execute(
  this.deviceId,
  'camera.capture',

quality: ‘medium’ }

);
return result.imageData;

}

5.2 多设备数据同步

// DataSync.ts
const dataChannel = new HarmonyDataChannel(‘sync_channel’);

export function setupDataSync() {
dataChannel.on(‘data’, (payload) => {
DeviceEventEmitter.emit(‘syncUpdate’, payload);
});

return {
send: (data: any) => dataChannel.send(data),
close: () => dataChannel.destroy()
};

六、性能优化策略

6.1 资源管理方案

// ResourceManager.ts
class HardwareResource {
private static instance: HardwareResource;
private usageMap: Map<string, number> = new Map();

static getInstance() {
if (!HardwareResource.instance) {
HardwareResource.instance = new HardwareResource();
return HardwareResource.instance;

request(resource: ‘camera’‘npu’
‘gpu’, duration: number) {

const current = this.usageMap.get(resource) || 0;
if (current > 90) {
  throw new Error(${resource}资源不足);

this.usageMap.set(resource, current + 10);

setTimeout(() => {
  this.release(resource);
}, duration);

release(resource: string) {

const current = this.usageMap.get(resource) || 0;
this.usageMap.set(resource, Math.max(0, current - 10));

}

6.2 硬件加速配置

harmony.config.json

“hardwareAcceleration”: {

"graphics": "vulkan",
"neuralNetwork": "npu",
"sensorProcessing": "dsp"

},
“resourceLimits”: {
“maxCameraResolution”: “4K”,
“maxNPUUsage”: 0.7
}

七、调试与问题排查

7.1 日志收集方案

// DebugLogger.ts
import { HarmonyLogger } from ‘@ohos/rn-debug’;

const logger = new HarmonyLogger({
level: ‘debug’,
tags: [‘AI’, ‘Camera’, ‘Sensors’]
});

export function trackHardwareError(error: Error) {
logger.error(硬件调用异常: ${error.message}, {
stack: error.stack,
timestamp: Date.now()
});

// 自动上报到分析平台
HarmonyAnalytics.logException(error);

7.2 常见问题解决

相机启动失败

检查权限状态

ohpm check-permission ohos.permission.CAMERA

解决方案
确保manifest中声明权限

动态请求相机权限

检查其他应用是否占用相机资源

AI模型加载超时

// 优化模型加载
const model = await HarmonyAI.loadModel({
name: ‘face-detection’,
version: 3,
fallback: true, // 允许降级
progress: § => {
console.log(加载进度: ${p}%);
});

八、完整示例：智能拍照应用

8.1 主模块集成

// SmartCameraApp.tsx
export default function App() {
const [objects, setObjects] = useState<DetectedObject[]>([]);

const handlePhoto = async (uri: string) => {
const results = await detectObjects(uri);
setObjects(results);
speak(检测到${results.length}个物体);
};

return (
<View style={styles.container}>
<CameraView onCapture={handlePhoto} />
<ObjectList data={objects} />
</View>
);

8.2 权限管理

// PermissionManager.ts
import { HarmonyPermissions } from ‘@ohos/rn-core’;

const requiredPermissions = [
‘ohos.permission.CAMERA’,
‘ohos.permission.MICROPHONE’,
‘ohos.permission.READ_MEDIA’
];

export async function checkAllPermissions() {
const results = await Promise.all(
requiredPermissions.map(p => HarmonyPermissions.check§)
);

return results.every(Boolean);
export function requestMissingPermissions() {

return HarmonyPermissions.requestMultiple(requiredPermissions);

最佳实践总结
性能关键路径：

  graph LR
   A[RN组件] --> B[原生桥接层]

–> C[鸿蒙硬件抽象]

–> D[内核驱动]

优化每层数据传输效率
设备兼容矩阵：

设备类型 AI支持 相机能力 传感器精度
旗舰手机 NPU 4K@60fps ±0.1°
中端平板 GPU 1080p ±0.5°
智能手表 无 无 ±2°

错误恢复策略：

  // 分级回退机制

async function safeCallAI(text: string) {
try {
return await aiService.analyze(text);
catch (err) {

   console.warn('AI服务降级:', err);
   return localFallbackAnalyze(text);

}

通过本指南，您将获得：
完整的鸿蒙硬能力调用方案

经过验证的性能优化策略

企业级错误处理机制

跨设备协同开发能力

// 最终质量检查
function verifyIntegration() {
return (
checkCamera() &&
checkAIEngine() &&
checkSensors() &&
checkPerformance()
);

立即将您的React Native应用升级为鸿蒙全场景智能应用！
