鸿蒙应用开发之动画特效十二星座之星空环绕

仿佛云烟
发布于 2025-6-28 17:02
浏览
0收藏

一、工具


鸿蒙应用开发之动画特效十二星座之星空环绕-鸿蒙开发者社区

DevEco Studio


二、项目介绍

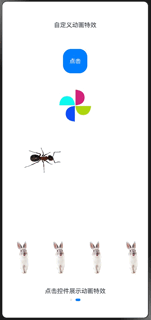

先来看看简单的特效


鸿蒙应用开发之动画特效十二星座之星空环绕-鸿蒙开发者社区


知识点:



1、动画示例1:


点击放大缩小


鸿蒙应用开发之动画特效十二星座之星空环绕-鸿蒙开发者社区


很简单在onClick()设置如下代码即可:


.onClick(() => {
          if (this.flag) {
            animateTo({
              duration: 2000,
              curve: Curve.EaseOut,
              iterations: 1,
              playMode: PlayMode.Normal,
              onFinish: () => {
                console.info('play end')
              }
            }, () => {
              this.widthSize = 60
              this.heightSize = 60
            })
          } else {
            animateTo({}, () => {
              this.widthSize = 100
              this.heightSize = 100
            })
          }
          this.flag = !this.flag
        })


2、动画示例2:


单击旋转


鸿蒙应用开发之动画特效十二星座之星空环绕-鸿蒙开发者社区


代码:


.animation({//自身转动特效
          duration: this.speed,
          curve: Curve.Linear,
          delay: 0,
          iterations: -1, // 设置-1表示动画无限循环
          playMode: PlayMode.Normal
        })


需要注意,rotateAngle = 360  speed -=1000发生变化才会触发动画。


所以改进后是这样的可以动态控制


.onClick(()=>{
          if (this.isCenter) {
            animateTo({//自身转动特效
              duration: 0,
              curve: Curve.Linear,
              delay: 0,
              iterations: 0, // 设置-1表示动画无限循环
              playMode: PlayMode.Normal
            }, () => {
              this.rotateAngle = 0
            })
            promptAction.showToast({
              message: '暂停',
              duration: 500
            })
          } else {
            animateTo({//自身转动特效
              duration: 5000,
              curve: Curve.Linear,
              delay: 0,
              iterations: -1, // 设置-1表示动画无限循环
              playMode: PlayMode.Normal
            }, () => {
              this.rotateAngle = 0
            })
            promptAction.showToast({
              message: '开始',
              duration: 500
            })
          }
          this.isCenter = !this.isCenter

          //clearInterval(this.intervalID);
        })


进一步优化(动画衔接问题,看起来更顺畅):


setInterval(()=> {//每0.1秒执行0.5°的转动,动画更平滑

    for (let index = 0; index < 12; index++) {
      let doubleAngle = (this.averageAngle - 30 * index + 0) * Math.PI / 180
      let sin = Math.sin(doubleAngle);
      let cos = Math.cos(doubleAngle);
      this.widAr[index] =this.radius1+this.radius1cos
      this.heiAr[index] =this.radius2+this.radius2sin * Math.cos(Math.PI * 5 / 18)
    }

    if (this.isRotate) {
      if (this.averageAngle<360) {//0~360°循环
        this.averageAngle+=0.5
      }else {
        this.averageAngle = 0;
      }
      this.rotateAngle = 360
    }


  }, 100)


3、动画示例3:


蚂蚁行走路径动画


鸿蒙应用开发之动画特效十二星座之星空环绕-鸿蒙开发者社区


代码设置:


Column() {
      Image(r('app.media.constellation1'))
            .width(this.img)
            .height(this.img)

          Text('天蝎座')
            .fontColor(r('app.media.constellation2'))
            .width(this.img)
            .height(this.img)

          Text('处女座')
            .fontColor(r('app.media.constellation3'))
            .width(this.img)
            .height(this.img)

          Text('双子座')
            .fontColor(r('app.media.constellation4'))
            .width(this.img)
            .height(this.img)

          Text('双鱼座')
            .fontColor(r('app.media.constellation5'))
            .width(this.img)
            .height(this.img)

          Text('金牛座')
            .fontColor(r('app.media.constellation6'))
            .width(this.img)
            .height(this.img)

          Text('射手座')
            .fontColor(r('app.media.constellation7'))
            .width(this.img)
            .height(this.img)

          Text('狮子座')
            .fontColor(r('app.media.constellation8'))
            .width(this.img)
            .height(this.img)

          Text('摩羯座')
            .fontColor(r('app.media.constellation9'))
            .width(this.img)
            .height(this.img)

          Text('巨蟹座')
            .fontColor(r('app.media.constellation10'))
            .width(this.img)
            .height(this.img)

          Text('水瓶座')
            .fontColor(r('app.media.constellation11'))
            .width(this.img)
            .height(this.img)

          Text('天秤座')
            .fontColor(r('app.media.constellation12'))
            .width(this.img)
            .height(this.img)

          Text('白羊座')
            .fontColor($r('app.color.white'))

        } .position({x:this.widAr[11],y:this.heiAr[11]})
        .id('star12')
        .onClick(()=>{
          promptAction.showToast({
            message: '点击白羊座',
            duration: 500
          })
        })


      }.width('100%')
      .height('100%')
      .onAreaChange((oldValue: Area, newValue: Area) => {
        this.radius1 = new Number(newValue.width).valueOf()/2-25
        this.radius2 = new Number(newValue.height).valueOf()/2-25
      })


先把图片贴上去,然后计算旋转位置。

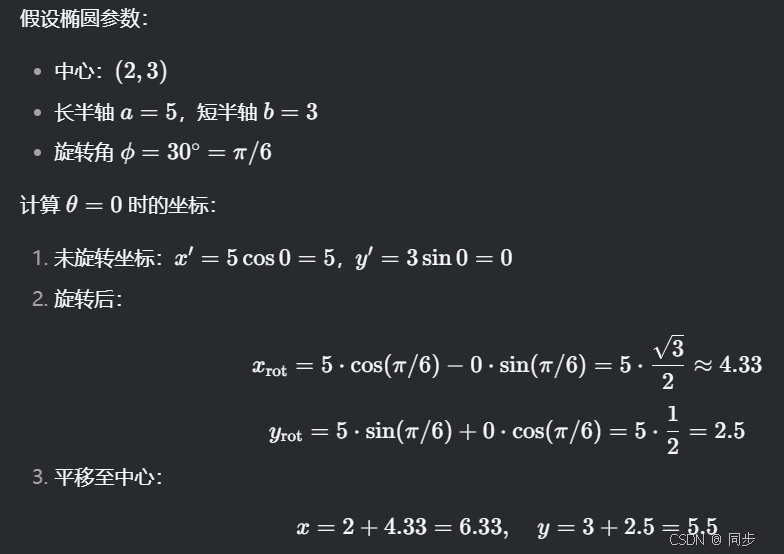

需用到一些计算公式


椭圆的标准方程是(x/a)^2 + (y/b)^2 =1


偏心率e=√(1 - (b/a)^2)


鸿蒙应用开发之动画特效十二星座之星空环绕-鸿蒙开发者社区



然后根据公式代码实现旋转后的坐标:


setInterval(()=> {//每0.1秒执行0.5°的转动,动画更平滑

    for (let index = 0; index < 12; index++) {
      let doubleAngle = (this.averageAngle - 30 * index + 0) * Math.PI / 180
      let sin = Math.sin(doubleAngle);
      let cos = Math.cos(doubleAngle);
      this.widAr[index] =this.radius1+this.radius1cos
      this.heiAr[index] =this.radius2+this.radius2sin * Math.cos(Math.PI * 5 / 18)
    }

    if (this.isRotate) {
      if (this.averageAngle<360) {//0~360°循环
        this.averageAngle+=0.5
      }else {
        this.averageAngle = 0;
      }
      this.rotateAngle = 360
    }


  }, 100)


定义两个状态变量去更新UI:


@State widAr:Array = [this.radius1,this.radius1,this.radius1,this.radius1,this.radius1,this.radius1,this.radius1,this.radius1,this.radius1,this.radius1,this.radius1,this.radius1]
@State heiAr:Array = [this.radius2,this.radius2,this.radius2,this.radius2,this.radius2,this.radius2,this.radius2,this.radius2,this.radius2,this.radius2,this.radius2,this.radius2]


最后我们来监听点击事件:


.onTouch((event?: TouchEvent) => {//页面监听滑动控
      if(event){
        if (event.type === TouchType.Down) {
          this.eventType = 'Down'
          this.x1 =event.touches[0].x
          this.isRotate = false
        }
        if (event.type === TouchType.Up) {
          this.eventType = 'Up'
          this.isRotate = true
        }
        if (event.type === TouchType.Move) {
          this.eventType = 'Move'

          this.x2 =event.touches[0].x -this.x1


          //左右滑动控制转动
          if (event.touches[0].y<this.radius2){
            if (this.x2>0) {
              this.averageAngle +=5
            }else {
              this.averageAngle -=5
            }
          }else {
            if (this.x2>0) {
              this.averageAngle -=5
            }else {
              this.averageAngle +=5
            }
          }
        }
      }
    })


实现左右滑动加速效果,背景给一个星空背景,这样一来就实现了旋转的十二星辰。


源码Demo:​​MyAnimation: 鸿蒙动画特效旋转的十二星辰​
