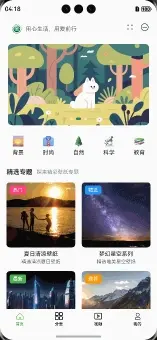

05-自然壁纸实战教程-首页

前言

这一章节需要完成的功能主要有沉浸式、首页搜索框、轮播大图、分类、精选主题、壁纸列表还有 tab容器结构。

tab容器结构

元服务的tab结构需要使用 AtomicServiceNavigation来实现

基本示例

import { AtomicServiceNavigation, MixMode, GradientAlpha, BackgroundTheme } from '@kit.ArkUI';
import { AtomicServiceTabs, TabBarOptions, TabBarPosition } from '@kit.ArkUI';
@Entry
@Component
struct Index {
  @State message: string = '主题';
  childNavStack: NavPathStack = new NavPathStack();
  @Builder
  tabContent1() {
    Text('first page')
      .onClick(() => {
        this.childNavStack.pushPath({ name: 'page one' })
      })
  }


  @Builder
  tabContent2() {
    Text('second page')
  }


  @Builder
  tabContent3() {
    Text('third page')
  }


  @Builder
  navigationContent() {
    AtomicServiceTabs({
      tabContents: [
        () => {
          this.tabContent1()
        },
        () => {
          this.tabContent2()
        },
        () => {
          this.tabContent3()
        }
      ],
      tabBarOptionsArray: [
        new TabBarOptions($r('sys.media.ohos_ic_public_phone'), '功能1'),
        new TabBarOptions($r('sys.media.ohos_ic_public_location'), '功能2', Color.Green, Color.Red),
        new TabBarOptions($r('sys.media.ohos_ic_public_more'), '功能3')
      ],
      tabBarPosition: TabBarPosition.BOTTOM,
      barBackgroundColor: $r('sys.color.ohos_id_color_bottom_tab_bg'),
      onTabBarClick: (index: Number) => {
        if (index == 0) {
          this.message = '功能1';
        } else if (index == 1) {
          this.message = '功能2';
        } else {
          this.message = '功能3';
        }
      }
    })
  }


  @Builder
  pageMap(name: string) {
    if (name === 'page one') {
      PageOne()
    } else if (name === 'page two') {
      PageTwo()
    }
  }


  build() {
    Row() {
      Column() {
        AtomicServiceNavigation({
          navigationContent: () => {
            this.navigationContent()
          },
          title: this.message,
          titleOptions: {
            isBlurEnabled: false
          },
          gradientBackground: {
            primaryColor: '#FF0000',
            secondaryColor: '#00FF00',
            backgroundTheme: BackgroundTheme.LIGHT,
            mixMode: MixMode.AVERAGE,
            alpha: GradientAlpha.OPACITY_100
          },
          navDestinationBuilder: this.pageMap,
          navPathStack: this.childNavStack,
          mode: NavigationMode.Stack
        })
      }
      .width('100%')
    }
    .height('100%')
  }
}


@Component
export struct PageOne {
  pageInfo: NavPathStack = new NavPathStack();


  build() {
    NavDestination() {
      Button('Next')
        .onClick(() => {
          this.pageInfo.pushPath({ name: 'page two'})
        })
    }
    .title('PageOne')
    .onReady((context: NavDestinationContext) => {
      this.pageInfo = context.pathStack;
    })
  }
}


@Component
export struct PageTwo {
  pageInfo: NavPathStack = new NavPathStack();


  build() {
    NavDestination() {
      Button('End')
    }
    .title('PageTwo')
    .onReady((context: NavDestinationContext) => {
      this.pageInfo = context.pathStack;
    })
  }
}

效果

项目中的 AtomicServiceNavigation 使用

AtomicServiceNavigation({
  navigationContent: () => {
    this.navigationContent()
  },
  navPathStack: NavigationUtils.getInstance().pageInfos,// 封装的常量，指定跳转的页面
  hideTitleBar: true,
  mode: NavigationMode.Stack,
})

this.navigationContent()

  @Builder
  navigationContent() {
    AtomicServiceTabs({
      tabContents: [
        () => {
          this.tabContentHome()
        },
        () => {
          this.tabContentCategory()
        },
        () => {
          this.tabContentVideo()
        },
        () => {
          this.tabContentMine()
        }
      ],
      tabBarOptionsArray: [
        new TabBarOptions($r('app.media.index'), '首页', $r('app.color.common__bg'), "#53AA37"),
        new TabBarOptions($r('app.media.category'), '分类', $r('app.color.common__bg'), "#53AA37"),
        new TabBarOptions($r('app.media.video'), '视频', $r('app.color.common__bg'), "#53AA37"),
        new TabBarOptions($r('app.media.mine'), '我的', $r('app.color.common__bg'), "#53AA37"),
      ],
      tabBarPosition: TabBarPosition.BOTTOM,
      barBackgroundColor: $r('app.color.white'),
    })
      .padding({
        top: AppStatu.vpTopHeight,
        bottom: AppStatu.vpBottomHeight,
      })
  }

沉浸式

沉浸式的代码已经提前封装起来了 src/main/ets/utils/fullScreenHelper.ets

import { window } from "@kit.ArkUI";

/**
 * 安全区域
 */
@ObservedV2
export class AppStatu {
  @Trace static vpBottomHeight: number = 0
  @Trace static vpTopHeight: number = 0
}

export class FullScreenHelper {
  static window: window.Window

  static setWindow(window: window.Window) {
    FullScreenHelper.window = window
  }

  static setFullScreen() {
    FullScreenHelper.window.setWindowLayoutFullScreen(true)
    const topAvoidArea = FullScreenHelper.window.getWindowAvoidArea(window.AvoidAreaType.TYPE_SYSTEM);
    const topRectHeight = topAvoidArea.topRect.height;
    const vpTopHeight = px2vp(topRectHeight)
    const bottomAvoidArea = FullScreenHelper.window.getWindowAvoidArea(window.AvoidAreaType.TYPE_NAVIGATION_INDICATOR);
    const bottomRectHeight = bottomAvoidArea.bottomRect.height;
    const vpBottomHeight = px2vp(bottomRectHeight)
    AppStatu.vpBottomHeight = vpBottomHeight
    AppStatu.vpTopHeight = vpTopHeight

  }

  static setWindowSystemBarProperties(color: string) {
    window.getLastWindow(getContext())
      .then(win => {
        win.setWindowSystemBarProperties({
          statusBarContentColor: color, // 默认浅色文字（可自定义）
        });
      })
  }
}

然后在EntryAbility中使用

  onWindowStageCreate(windowStage: window.WindowStage): void {
    // Main window is created, set main page for this ability
    hilog.info(DOMAIN, 'testTag', '%{public}s', 'Ability onWindowStageCreate');

    windowStage.getMainWindow() // 沉浸式
      .then(win => {
        FullScreenHelper.setWindow(win)
        FullScreenHelper.setFullScreen()
      })
    windowStage.loadContent('pages/Index', (err) => {
      if (err.code) {
        hilog.error(DOMAIN, 'testTag', 'Failed to load the content. Cause: %{public}s', JSON.stringify(err));
        return;
      }
      hilog.info(DOMAIN, 'testTag', 'Succeeded in loading the content.');
    });
  }

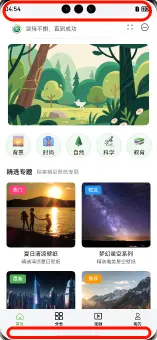

效果

首页

这里的首页不是指 src/main/ets/pages/Index.ets，而是指使用了AtomicServiceNavigation 管理的 首页 src/main/ets/views/homeView/HomeView.ets

首页搜索框

这里的图片和文字内容做成了可以轮训的样子

  /**
   * 顶部轮询语句框
   */
  @Builder
  PositiveQuotesBuilder() {
    Row() {
      Column() {
        Swiper() {
          ForEach(LocalData.PositiveQuotes, (quote: string) => {
            Row() {
              Image($r('app.media.app_icon'))
                .width(24)
                .height(24)
                .margin({ right: 10 })
              Text(quote)
                .fontSize(14)
                .fontColor('#666666')
                .maxLines(1)
                .textOverflow({ overflow: TextOverflow.Ellipsis })
            }
            .width('100%')
            .height('100%')
            .backgroundColor($r('app.color.white'))
            .borderRadius(20)
            .padding({ left: 15, right: 15 })
            .justifyContent(FlexAlign.Start)
          })
        }
        .width('100%')
        .height(45)
        .autoPlay(true)
        .loop(true)
        .vertical(true)
        .interval(3000)
        .indicator(false)
      }
      .width('75%')
      .height(45)
      .borderRadius(20)
      .backgroundColor($r('app.color.white'))
      .shadow({
        radius: 4,
        color: 'rgba(0, 0, 0, 0.1)',
        offsetX: 0,
        offsetY: 2
      })
    }
    .width('100%')
    .justifyContent(FlexAlign.Start)
    .padding({ left: 15 })
    .margin({ top: 10, bottom: 15 })
  }

LocalData.PositiveQuotes 提供了基本的数据资源

  /**
   * 正能量语句数组
   */
  static readonly PositiveQuotes: string[] = [
    '每一天都是新的开始，充满无限可能',
    '坚持不懈，直到成功',
    '微笑面对生活，积极拥抱未来',
    '态度决定高度，行动创造价值',
    '今天的努力，是明天的收获',
    '相信自己，你比想象中更强大',
    '感恩所有，珍惜当下',
    '用心生活，用爱前行'
  ]

轮播大图

轮播图使用Swiper组件渲染即可

  // 精选壁纸轮播
  Swiper() {
    ForEach(LocalData.BannerData, (item: string) => {
      Image(item)
        .width('100%')
        .height(200)
        .borderRadius(10)
    })
  }
  .width('90%')
  .height(200)
  .autoPlay(true)
  .loop(true)
  .interval(3000)
  .borderRadius(10)
  //导航点颜色
  .indicator(
    Indicator.dot()
      .color('rgba(255, 255, 255, 0.3)')
      .selectedColor('#ff258075')
  )

LocalData.BannerData 负责提供轮播数据

  /**
   * 精选壁纸轮播数据
   */
  static readonly BannerData: string[] = [
    "https://wsy997.obs.cn-east-3.myhuaweicloud.com/zrbz/1.png",
    "https://wsy997.obs.cn-east-3.myhuaweicloud.com/zrbz/2.png",
    "https://wsy997.obs.cn-east-3.myhuaweicloud.com/zrbz/3.png"
  ]

分类

可以滚动的结构，选择使用了 Scroll

  // 分类图标-- 横向列表
  Scroll() {
    Row() {
      ForEach(LocalData.CategoryData, (item: ICategory) => {
        CategoryItemView({ text: item.text, icon: item.icon, value: item.id })
          .margin({ right: 15 })
      })
    }
    .padding({ left: 15 })
  }
  .width("100%")
  .scrollable(ScrollDirection.Horizontal)
  .scrollBar(BarState.Off)

LocalData.CategoryData 对应的数据是

  /**
   * 类型数据
   */
  static readonly CategoryData: ICategory[] = [
    {
      "id": 0,
      "text": "背景",
      "value": "backgrounds",
      "icon": "🌅"
    },
    {
      "id": 1,
      "text": "时尚",
      "value": "fashion",
      "icon": "👔"
    },
    {
      "id": 2,
      "text": "自然",
      "value": "nature",
      "icon": "🌲"
    },
    {
      "id": 3,
      "text": "科学",
      "value": "science",
      "icon": "🔬"
    },
    {
      "id": 4,
      "text": "教育",
      "value": "education",
      "icon": "📚"
    },
    {
      "id": 5,
      "text": "感情",
      "value": "feelings",
      "icon": "❤️"
    },
    {
      "id": 6,
      "text": "健康",
      "value": "health",
      "icon": "🏥"
    },
    {
      "id": 7,
      "text": "人",
      "value": "people",
      "icon": "👥"
    },
    {
      "id": 8,
      "text": "宗教",
      "value": "religion",
      "icon": "🙏"
    },
    {
      "id": 9,
      "text": "地方",
      "value": "places",
      "icon": "🌆"
    },
    {
      "id": 10,
      "text": "动物",
      "value": "animals",
      "icon": "🐱"
    },
    {
      "id": 11,
      "text": "工业",
      "value": "industry",
      "icon": "🏭"
    },
    {
      "id": 12,
      "text": "计算机",
      "value": "computer",
      "icon": "💻"
    },
    {
      "id": 13,
      "text": "食品",
      "value": "food",
      "icon": "🍜"
    },
    {
      "id": 14,
      "text": "体育",
      "value": "sports",
      "icon": "🏃"
    },
    {
      "id": 15,
      "text": "交通",
      "value": "transportation",
      "icon": "🚗"
    },
    {
      "id": 16,
      "text": "旅行",
      "value": "travel",
      "icon": "✈️"
    },
    {
      "id": 17,
      "text": "建筑物",
      "value": "buildings",
      "icon": "🏢"
    },
    {
      "id": 18,
      "text": "商业",
      "value": "business",
      "icon": "💼"
    },
    {
      "id": 19,
      "text": "音乐",
      "value": "music",
      "icon": "🎵"
    }
  ]

精选主题

精选主题比较简单，就是标题和对应的内容。

内容是使用Grid 布局实现

  // 精选专题
  Column() {
    // 标题
    Row({ space: 10 }) {
      Text('精选专题')
        .fontSize(16)
        .fontWeight(FontWeight.Bold)
      Text('探索精彩壁纸专题')
        .fontSize(13)
        .fontColor('#ff888991')
    }
    .width('100%')
    .justifyContent(FlexAlign.Start)
    .margin({ bottom: 16 })

    // 内容
    Grid() {
      ForEach(LocalData.SpecialTopicData, (item: SpecialTopicType) => {
        GridItem() {
          SpecialTopicItemView({
            tag: item.tag,
            tagColor: item.tagColor,
            title: item.title,
            desc: item.desc,
            text: item.text,
            img: item.img
          })
        }
      })
    }
    .columnsTemplate('1fr 1fr')
    .columnsGap(16)
    .rowsGap(16)
    .width('100%')
  }
  .padding({ left: 16, right: 16, top: 6 })

LocalData.SpecialTopicData 对应的数据是

  /**
   * 精选专题
   */
  static readonly SpecialTopicData: SpecialTopicType[] = [
    {
      tag: '热门',
      tagColor: '#FF4081',
      title: '夏日清凉壁纸',
      desc: '精选清凉夏日壁纸',
      text: '夏日',
      img: "https://wsy997.obs.cn-east-3.myhuaweicloud.com/zrbz/summer.jpg"
    },
    {
      tag: '精选',
      tagColor: '#2196F3',
      title: '梦幻星空系列',
      desc: '精选唯美星空壁纸',
      text: '星空',
      img: "https://wsy997.obs.cn-east-3.myhuaweicloud.com/zrbz/starry.jpg"
    },
    {
      tag: '最新',
      tagColor: '#4CAF50',
      title: '城市夜景',
      desc: '精选城市&夜景壁纸',
      text: '城市夜景',
      img: "https://wsy997.obs.cn-east-3.myhuaweicloud.com/zrbz/city.jpg"
    },
    {
      tag: '推荐',
      tagColor: '#FF9800',
      title: '自然风光精选',
      desc: '精选自然风光壁纸',
      text: '自然风光',
      img: "https://wsy997.obs.cn-east-3.myhuaweicloud.com/zrbz/generated.png"
    }
  ]

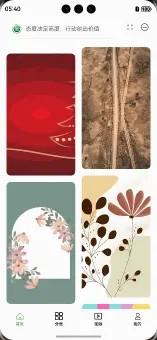

壁纸列表

最后就是壁纸列表了，考虑到壁纸列表存在比较多数据，因此这里使用 WaterFlow 和 LazyForEach 实现页面渲染和分页加载

  //壁纸瀑布流
  WaterFlow() {
    LazyForEach(this.homeViewModel.imgList, (item: PixabayImage, index: number) => {
      FlowItem() {
        if (index % 6 === 0) {
          NativeAdPage()
        } else {
          WallpaperCard({ image: item })
        }
      }
      .width('100%')
      .onAppear(() => {
        if (index == (this.homeViewModel.imgList.totalCount() - 5)) {
          this.homeViewModel.onGetListEnd()
        }
      })
    })
  }
  .cachedCount(10)
  .columnsGap(16)
  .rowsGap(16)
  .width('100%')
  .height('100%')
  .columnsTemplate('1fr 1fr')
  .padding({ left: 16, right: 16 })
  .nestedScroll({
    scrollForward: NestedScrollMode.PARENT_FIRST,
    scrollBackward: NestedScrollMode.SELF_FIRST
  })

this.homeViewModel.imgList 来自于自己封装的 获取数据的类 entry/src/main/ets/viewModel/HomeViewModel.ets

import { getPhotoList } from "../services/photoServices";
import { LazyForEachDataSource } from "../utils/lazyForEachDataSource";
import { LocalData } from "../utils/localData";
import { PixabayImage, PixabayParams } from "../utils/types";
import json from "@ohos.util.json";

@ObservedV2
export class HomeViewModel {
  /**
   * 携带的参数
   */
  params: PixabayParams = {
    q: LocalData.CategoryData[0].value,
    page: 1,
    safesearch: true,
    per_page: 20,
  }
  /**
   * 瀑布流图片数据集合
   */
  @Trace
  imgList: LazyForEachDataSource<PixabayImage> = new LazyForEachDataSource

  /**
   * 获得瀑布流图片
   */
  async getList() {
    try {
      const res = await getPhotoList(this.params)
      if (res) {
        this.imgList.setArray(res.hits)
      }
    } catch (e) {
      console.log('瀑布流图片', json.stringify(e, null, 2))
    }
  }

  /**
   * 触底加载更多方法
   */
  async onGetListEnd() {
    this.params.page!++
    const res = await getPhotoList(this.params)
    if (res && res.hits.length > 0) {
      this.imgList.pushDataArr(res.hits)
    } else {
      this.params.page!--
    }
  }
}

如何获取资料

获取资料的途径，可以关注我们 官网的公众号 青蓝逐码 ，输入 项目名称 《自然壁纸》 即可获得以上资料。

关于我们

关于青蓝逐码组织

如果你兴趣想要了解更多的鸿蒙应用开发细节和最新资讯，甚至你想要做出一款属于自己的应用！欢迎在评论区留言或者私信或者看我个人信息，可以加入技术交流群。
