鸿蒙Next动态歌词组件封装增加暂停功能 原创

上一篇实现了一句歌词颜色渐变效果，这篇在上一篇的基础上，完整实现歌词的动态展示，并且实现播放和暂停功能。

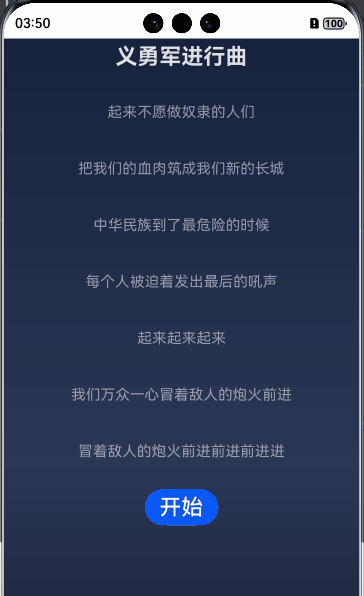

最终效果：

歌词解析：
我们把歌词先按行分割，记录每行歌词的开始时间和歌词内容，然后再将每行的歌词按照上一篇的方法分割，依次执行属性动画。

[00:00.000]义勇军进行曲
[00:07.00]
[00:08.44] 起来 [00:09.64] 不愿做 [00:10.84] 奴隶的 [00:12.04] 人们
[00:12.65]
[00:12.85] 把我们的 [00:14.05] 血肉 [00:15.25] 筑成我们 [00:16.45] 新的长城
[00:17.89]
[00:18.99] 中华民族 [00:20.19] 到了 [00:21.39] 最危险的 [00:22.59] 时候
[00:24.26]
[00:25.34] 每个人 [00:26.54] 被迫着 [00:27.74] 发出 [00:28.94] 最后的 [00:30.14] 吼声
[00:30.36]
[00:31.16] 起来 [00:32.36] 起来 [00:33.56] 起来
[00:34.25]
[00:35.37] 我们万众一心 [00:36.57] 冒着敌人的 [00:37.77] 炮火 [00:38.97] 前进
[00:39.27]
[00:40.79] 冒着敌人的 [00:41.99] 炮火 [00:43.19] 前进 [00:44.39] 前进 [00:45.59] 前进 [00:46.79] 进

注意
解析歌词时，需要读取歌词前后的时间，计算动画时长，需要注意时间格式，有的歌词格式下载下来可能时00:00:000，修改时间计算的正则表达式即可，保持歌词内容和解析的统一。
动画优化：
上篇说到animateTo的刷新和V2冲突，如果要实现动画的暂停功能，这里我们使用createAnimator方法，自定义一个动画，然后执行play、pause方法，即可实现动画的播放、暂停功能。
createAnimator()参数：AnimatorOptions

createAnimator()执行方法和回调

歌词组件封装源码：

// 一行中有单独时间分割的字或词语
export class Word {
  index: number = 0;
  text: string = '';
  startTime: number = 0;
  durationTime: number = 0;
}
// 一行歌词
export class LrcLine {
  lineStartTime: number = 0;
  words: Word[] = [];
}
@ComponentV2
struct LyricView{
  private scroller: Scroller = new Scroller();
  @Require @Param lrcTitle:string
  @Require @Param lrcName:string
  @Local mLrcEntryList: LrcLine[] = [];
  @Local currentIndex: number = 0; //每词在每句中索引
  @Local colorStopValue: number = 0;
  @Local currentLineIndex: number = 0; //每句歌词索引
  @Local lrcDuration: number = 0; // 歌词持续时间
  private lrcAnimator: AnimatorResult | undefined = undefined
  @Consumer() displaying: boolean = false
  @Monitor('displaying')
  play(){
    if (this.displaying) {
      //播放
      this.lrcAnimator?.play()
    }else {
      //播放
      this.lrcAnimator?.pause()
    }
  }
  playLrc(duration: number) {
    this.lrcAnimator = this.getUIContext().createAnimator({
      duration: duration,
      easing: 'linear',
      delay: 0,
      fill: 'none',
      direction: 'normal',
      iterations: 1,
      begin: 0,
      end: 1
    })
    this.lrcAnimator.onFinish = () => {
      this.colorStopValue = 0
      this.currentIndex++;
      let currentLine = this.mLrcEntryList[this.currentLineIndex]
      if (this.currentIndex < currentLine.words.length) {
        this.lrcDuration = currentLine.words[this.currentIndex].durationTime;
        this.playLrc(this.lrcDuration);
      } else {
        this.currentIndex = 0
        this.currentLineIndex++
        if (this.currentLineIndex < this.mLrcEntryList.length) {
          let nextLine = this.mLrcEntryList[this.currentLineIndex]
          this.lrcDuration = nextLine.words[this.currentIndex].durationTime;
          this.playLrc(this.lrcDuration);
        }else {
          this.currentLineIndex = 0
          this.displaying = false
        }
      }
    }
    this.lrcAnimator.onFrame = (value: number) => {
      this.colorStopValue=value
    }
    if (this.displaying) this.lrcAnimator.play()
  }
  async aboutToAppear(): Promise<void> {
    let lrcString = await getContext(this).resourceManager.getRawFileContent(this.lrcName);
    let textDecoder = util.TextDecoder.create('utf-8', { ignoreBOM: true });
    let stringData = textDecoder.decodeToString(lrcString, { stream: false });
    this.processLrc(stringData.split('\n'));
  }
  processLrc(lyric: string[]): void {
    let lrcList: LrcLine[] = [];
    //读取歌词文件中的时间 时间格式为00:00:00
    let wordRegex: RegExp = /\[(\d{2}):(\d{2})\.(\d{2})\]([^[\]]+)/g;
    let wordIndex = 0;

    lyric.forEach((line: string) => {
      let words: Word[] = [];
      let lineStartTime: number = 0;
      let match: RegExpExecArray | null;

      while ((match = wordRegex.exec(line)) !== null) {
        let mm: number = Number.parseInt(match[1], 10);
        let ss: number = Number.parseInt(match[2], 10);
        let ms: number = Number.parseInt(match[3], 10);
        let text: string = match[4].trim();
        let time: number = mm * 60 * 1000 + ss * 1000 + ms * 10;

        if (words.length === 0) {
          lineStartTime = time;
        }
        let nextTime = this.extractAllTimestampsFromLyrics(lyric)[wordIndex+1]
        let lineTimeDuration: number = nextTime !== undefined ? (nextTime! - time) : 1000;
        words.push({
          index: wordIndex,
          text: text,
          startTime: time,
          durationTime: lineTimeDuration
        });
        wordIndex++
      }
      if (words.length > 0) {
        lrcList.push({
          lineStartTime: lineStartTime,
          words: words
        });
      }
    });
    this.mLrcEntryList = lrcList;
  }
  extractAllTimestampsFromLyrics(lyric: string[]): number[] {
    const timestamps: number[] = [];

    for (const line of lyric) {
      let regex = /\[(\d{2}):(\d{2})\.(\d{2})\]/g;
      let match: RegExpExecArray | null;

      while ((match = regex.exec(line)) !== null) {
        let mm = parseInt(match[1], 10);
        let ss = parseInt(match[2], 10);
        let ms = parseInt(match[3], 10);

        let timeMs = mm * 60 * 1000 + ss * 1000 + ms * 10;
        timestamps.push(timeMs);
      }
    }
    // 升序排序（确保时间顺序正确）
    return timestamps.sort((a, b) => a - b);
  }
  build() {
    Column(){
      Text(this.lrcTitle)
        .fontColor(Color.White)
        .fontSize(24)
        .fontWeight(700)
        .opacity(0.86)
        .height(40)
      Stack() {
        List({ initialIndex: 0, scroller: this.scroller }) {
          ForEach(this.mLrcEntryList, (line: LrcLine, lineIndex: number) => {
            ListItem() {
              Column() {
                Flex({ wrap: FlexWrap.Wrap, justifyContent: FlexAlign.Center }) {
                  ForEach(line.words, (word: Word, wordIndex: number) => {
                    Row() {
                      Text(word.text)
                        .fontSize(this.currentLineIndex==lineIndex?20:16)
                        .blendMode(BlendMode.DST_IN, BlendApplyType.OFFSCREEN)
                    }
                    .margin({
                      right: word.text.match(/[a-zA-Z0-9]/) ? 4 : 0,
                      bottom: 2
                    })
                    .blendMode(BlendMode.SRC_OVER, BlendApplyType.OFFSCREEN)
                    .linearGradient({
                      direction: GradientDirection.Right,
                      colors: (() => {
                        if (this.currentLineIndex !== lineIndex) {
                          // 当前行未激活，全部白色
                          return [['#FFFFFFFF', 0], ['#FFFFFFFF', 1.0]];
                        }
                        if (wordIndex < this.currentIndex) {
                          // 已播放的字：全红
                          return [['#FF0000', 0.0], ['#FF0000', 1.0]];
                        } else if (wordIndex === this.currentIndex) {
                          // 正在播放的字：红色渐变（从 0 到 this.colorStopValue）
                          return [
                            ['#FF0000', 0.0],
                            ['#FF0000', this.colorStopValue],
                            ['#FFFFFF', this.colorStopValue],
                            ['#FFFFFF', 1.0]
                          ];
                        } else {
                          // 未播放的字：全白
                          return [['#FFFFFFFF', 0], ['#FFFFFFFF', 1.0]];
                        }
                      })()
                    })
                    .onAppear(() => {
                      this.lrcDuration = line.words[wordIndex].durationTime
                      if (lineIndex === this.currentLineIndex && wordIndex === 0) {
                        this.playLrc(line.words[wordIndex].durationTime);
                      }
                    })
                  })
                }
                .width('90%')
                .padding(10)
              }
              .width('100%')
            }
            .opacity(lineIndex === this.currentLineIndex ? 1 : 0.8)
          })
        }
        .height('auto')
      }
    }
  }
  aboutToDisappear(): void {
    this.lrcAnimator?.finish();
    this.lrcAnimator = undefined;
  }
}

歌词组件使用

import { util } from '@kit.ArkTS';
import { AnimatorResult } from '@kit.ArkUI';
@Entry
@ComponentV2
struct LyricTest {
  @Provider() displaying: boolean = false;
  build() {
    Column({space:20}) {
      LyricView({lrcTitle:'义勇军进行曲',lrcName:'sing.lrc'})
      Button(this.displaying?'暂停':'开始').fontSize(24).onClick(()=>{
        this.displaying=!this.displaying
      })
    }
    .width('100%')
    .height('100%')
    .linearGradient({
      // 渐变方向
      direction: GradientDirection.Bottom,
      // 渐变颜色是否重复
      repeating: true,
      // 数组末尾元素占比小于1时满足重复着色效果
      colors: [['#17233c', 0.0], ['#2b3755', 0.6], ['#181e34', 1]]
    })
  }
}
