HarmonyOS Developer 常见组件开发指导
marquee开发指导
marquee为跑马灯组件,用于展示一段单行滚动的文字。具体用法请参考marquee。
创建marquee组件
在pages/index目录下的hml文件中创建一个marquee组件。
<!-- xxx.hml -->
<div class="container">
<marquee style="width: 100%;height: 80px; color: #ffffff; background-color: #0820ef;padding-left: 200px;">This is a marquee.</marquee>
</div>
/* xxx.css */
.container {
width: 100%;
height: 100%;
flex-direction: column;
justify-content: center;
align-items: center;
background-color: #F1F3F5;
}
设置属性和样式

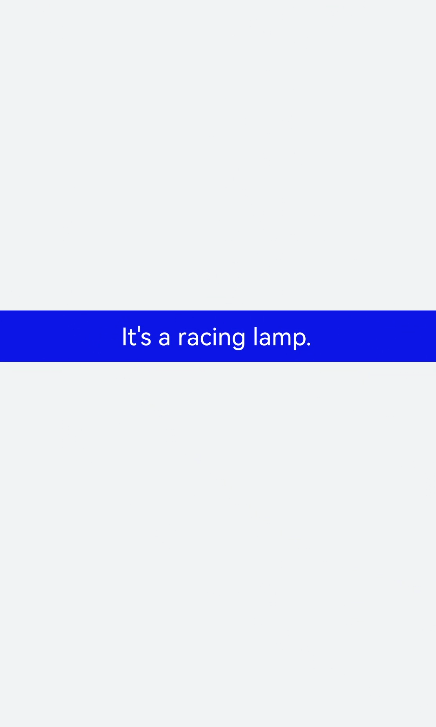

marquee通过color和font-weight属性设置跑马灯中文本的颜色、字体粗细和边框样式。
<!-- xxx.hml -->
<div class="container">
<marquee class="custommarquee">It's a racing lamp.</marquee>
</div>
/* xxx.css */
.container {
width: 100%;
height: 100%;
flex-direction: column;
justify-content: center;
align-items: center;
background-color: #F1F3F5;
}
.custommarquee {
width: 100%;
height: 80px;
padding: 10px;
margin: 20px;
border: 4px solid #6712f1;
border-radius: 20px;
font-size: 40px;
color: #ffffff; font-weight: bolder;
font-family: serif;
background-color: #1567f3;
}
通过scrollamount、loop和direction属性实现跑马灯滚动时移动的最大长度、滚动次数和文字滚动方向。
<!-- xxx.hml -->
<div class="tutorial-page">
<div class="mymarquee">
<marquee loop="{{loopval}}" scrollamount="{{scroll}}" direction="{{isleft}}" class="marqueetext" id="testmarquee" onclick="makestart">
Life is a journey, not the destination.
</marquee>
</div>
<div style="width: 600px;height: 150px;flex-direction: row;justify-content: space-around;">
<button onclick="setleft" value="left"></button>
<button onclick="setright" value="right"></button>
</div>
</div>
/* xxx.css */
.tutorial-page {
width: 750px;
height: 100%;
flex-direction: column;
align-items: center;
justify-content: center;
background-color: #F1F3F5;
}
.marqueetext {
color: #ffffff;
font-family: serif;
font-size: 37px;
}
.mymarquee {
margin-top: 20px;
width:100%;
height: 100px;
margin-left: 50px;
margin-right: 50px;
border: 1px solid #6712f1;
background-color: #1567f3;
border-radius: 15px;
align-items: center;
}
button{
width: 200px;
height: 80px;
margin-top: 100px;
}
// xxx.js
export default {
private: {
loopval: -1,
scroll: 10,
isleft: "left",
},
onInit(){
},
setleft(e) {
this.isleft = "left"
},
setright(e) {
this.isleft = "right"
},
makestart(e) {
this.$element('testmarquee').start()
}
}
说明
当loop的值小于等于零时,跑马灯marquee将连续滚动。如果loop未指定,则默认为-1。
场景示例
本场景可以控制跑马灯文字的滚动和暂停。
跑马灯的次数设置为1,在结束的时候触发finish事件使跑马灯的次数加1,字体颜色变为随机颜色,调用start方法使跑马灯再次开始滚动。
<!-- xxx.hml -->
<div class="tutorial-page">
<div class="mymarquee">
<marquee style="color: {{color1}}" loop="{{loopval}}" scrollamount="{{scroll}}" direction="{{isleft}}" class="marqueetext"
id="testmarquee" onfinish="setfinish">
Life is a journey, not the destination.
</marquee>
</div>
<div style="width: 600px;height: 150px;flex-direction: row;justify-content: space-around;">
<button onclick="makestart" value="start"></button>
<button onclick="makestop" value="stop"></button>
</div>
</div>
/* xxx.css */
.tutorial-page {
width: 750px;
height: 100%;
flex-direction: column;
align-items: center;
justify-content: center;
}
.marqueetext {
font-size: 37px;
}
.mymarquee {
margin-top: 20px;
width:100%;
height: 100px;
margin-left: 50px;
margin-right: 50px;
border: 1px solid #dc0f27;
border-radius: 15px;
align-items: center;
}
button{
width: 200px;
height: 80px;
margin-top: 100px;
}
// xxx.js
export default {
private: {
loopval: 1,
scroll: 8,
color1: 'red'
},
onInit(){
},
setfinish(e) {
this.loopval= this.loopval + 1,
this.r = Math.floor(Math.random()*255),
this.g = Math.floor(Math.random()*255),
this.b = Math.floor(Math.random()*255),
this.color1 = 'rgba('+ this.r +','+ this.g +','+ this.b +',0.8)',
this.$element('testmarquee').start(),
this.loopval= this.loopval - 1
},
makestart(e) {
this.$element('testmarquee').start()
},
makestop(e) {
this.$element('testmarquee').stop()
}
}
qrcode开发指导

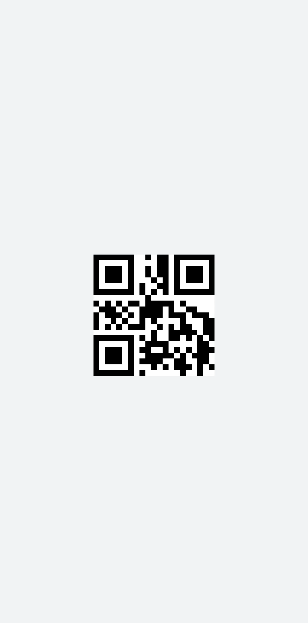

生成并显示二维码,具体用法请参考qrcode。
创建qrcode组件
在pages/index目录下的hml文件中创建一个qrcode组件。
<!-- xxx.hml-->
<div class="container">
<qrcode value="Hello"></qrcode>
</div>
/* xxx.css */
.container {
width: 100%;
height: 100%;
flex-direction: column;
align-items: center;
justify-content: center;
background-color: #F1F3F5;
}
说明
qrcode组件在创建的时候value的值为必填项。
设置组件类型
通过设置qrcode的type属性来选择按钮类型,如定义qrcode为矩形二维码、圆形二维码。
<!-- xxx.hml-->
<div class="container">
<select onchange="settype">
<option for="{{bcol_list}}" value="{{$item}}">{{$item}}</option>
</select>
<qrcode value="Hello" type="{{qr_type}}"></qrcode>
</div>
/* xxx.css */
.container {
width: 100%;
height: 100%;
flex-direction: column;
align-items: center;
justify-content: center;
background-color: #F1F3F5;
}
select{
margin-top: 50px;
margin-bottom: 50px;
}
// index.js
export default {
data: {
qr_type: 'rect',
bcol_list: ['rect','circle']
},
settype(e) {
this.qr_type = e.newValue
},
}
设置样式
通过color和background-color样式为二维码设置显示颜色和背景颜色。
<!-- xxx.hml-->
<div class="container">
<qrcode value="Hello" type="rect"></qrcode>
</div>
/* xxx.css */
.container {
width: 100%;
height: 100%;
flex-direction: column;
align-items: center;
justify-content: center;
background-color: #F1F3F5;
}
qrcode{
width: 300px;
height: 300px;
color: blue; background-color: #ffffff;
}
说明
- width和height不一致时,取二者较小值作为二维码的边长,且最终生成的二维码居中显示。
- width和height只设置一个时,取设置的值作为二维码的边长。都不设置时,使用200px作为默认边长。
场景示例
在本场景中将二维码与输入框绑定,通过改变输入框的内容改变二维码。
<!-- xxx.hml-->
<div class="container">
<input style="margin-bottom: 100px;" onchange="change"></input>
<qrcode value="{{textVal}}"></qrcode>
</div>
/* xxx.css */
.container {
width: 100%;
height: 100%;
flex-direction: column;
align-items: center;
justify-content: center;
background-color: #F1F3F5;
}
qrcode{
width: 400px;
height: 400px;
}
// index.js
export default{
data: {
textVal: ''
},
change(e){
this.textVal = e.value
}
}
search
提供搜索框组件,用于提供用户搜索内容的输入区域,具体用法请参考search。
创建search组件
在pages/index目录下的hml文件中创建一个search组件。
<!-- xxx.hml-->
<div class="container">
<search></search>
</div>
/* xxx.css */
.container {
width: 100%;
height: 100%;
flex-direction: column;
align-items: center;
justify-content: center;
background-color: #F1F3F5;
}
设置属性
通过设置hint、icon和searchbutton属性设置搜索框的提示文字、图标和末尾搜索按钮的内容。
<!-- xxx.hml-->
<div class="container">
<search hint="Please enter the search content" searchbutton="search" icon="/common/search1.png"></search>
</div>
/* xxx.css */
.container {
width: 100%;
height: 100%;
flex-direction: column;
align-items: center;
justify-content: center;
background-color: #F1F3F5;
}
添加样式
通过color、placeholder-color和caret-color样式来设置搜索框的文本颜色、提示文本颜色和光标颜色。
<!-- xxx.hml-->
<div class="container">
<search hint="Please enter the search content" searchbutton="search" ></search>
</div>
/* xxx.css */
.container {
width: 100%;
height: 100%;
flex-direction: column;
align-items: center;
justify-content: center;
background-color: #F1F3F5;
}
search{
color: black;
placeholder-color: black;
caret-color: red;
}
绑定事件
向search组件添加change、search、submit、share和translate事件,对输入信息进行操作。
<!-- xxx.hml-->
<div class="container">
<text style="margin-left: -7px;">
<span>Enter text and then touch and hold what you've entered</span>
</text>
<search hint="Please enter the search content" searchbutton="search" onsearch="search" onchange="change" ontranslate="translate" onshare="share"
onsubmit="submit">
</search>
</div>
/* xxx.css */
.container {
width: 100%;
height: 100%;
flex-direction: column;
align-items: center;
justify-content: center;
background-color: #F1F3F5;
}
text{
width: 100%;
font-size: 25px;
text-align: center;
margin-bottom: 100px;
}
// index.js
import promptAction from '@ohos.promptAction'
export default {
search(e){
promptAction.showToast({
message: e.value,
duration: 3000,
});
},
translate(e){
promptAction.showToast({
message: e.value,
duration: 3000,
});
},
share(e){
promptAction.showToast({
message: e.value,
duration: 3000,
});
},
change(e){
promptAction.showToast({
message: e.value,
duration: 3000,
});
},
submit(e){
promptAction.showToast({
message: 'submit',
duration: 3000,
});
}
}
场景示例
在本场景中通过下拉菜单选择search、Textarea和Input组件来实现搜索和输入效果。
<!-- xxx.hml-->
<div style="flex-direction: column;align-items: center;justify-content: center; width: 100%;">
<select class="slt1" id="slt1" onchange="setfield">
<option value="search">search</option>
<option value="textarea">Textarea</option>
<option value="input">Input</option>
</select>
<div if="{{showsearch}}" style="flex-direction: column;align-items: center;margin-top: 50px;height: 400px;justify-content: space-around;">
<search class="field" id="search1" hint="search1" onsubmit="submit" onchange="change" ></search>
<search class="field" id="search2" icon="common/search1.png" hint="search2" show="{{showsec}}" onsubmit="submit" onchange="change" ></search>
</div>
<div if="{{showtextarea}}" style="flex-direction: column;align-items: center;margin-top: 50px;height: 400px;justify-content: space-around;">
<textarea class="field" id="textarea1" extend="true" placeholder="textarea1" onchange="change" ></textarea>
<textarea class="field" id="textarea2" extend="true" placeholder="textarea2" onchange="change" show="{{showsec}}"></textarea>
</div>
<div if="{{showinput}}" style="flex-direction: column;align-items: center;margin-top: 50px;height: 400px;justify-content: space-around;">
<input type="text" class="field" id="input1" placeholder="input1" onchange="change" ></input>
<input type="text" class="field" id="input2" placeholder="input2" onchange="change" show="{{showsec}}"></input>
</div>
</div>
/* xxx.css */
.field {
width: 80%;
color: mediumaquamarine;
font-weight: 600;
placeholder-color: orangered;
}
.slt1{
font-size: 50px;
position: absolute;
left: 50px;
top: 50px;
}
// index.js
import promptAction from '@ohos.promptAction';
export default {
data: {
showsearch: true,
showtextarea: false,
showinput: false,
showsec: true,
},
setfield(e) {
this.field = e.newValue
if (e.newValue == 'search') {
this.showsearch = true
this.showtextarea = false
this.showinput = false
} else if (e.newValue == 'textarea') {
this.showsearch = false
this.showtextarea = true
this.showinput = false
} else {
this.showsearch = false
this.showtextarea = false
this.showinput = true
}
},
submit(e) {
promptAction.showToast({
message: '搜索!',
duration: 2000
})
},
change(e) {
promptAction.showToast({
message: '内容:' + e.text,
duration: 2000
})
}
}
