在做联系人、城市、商品分类等长列表页面时,很多同学都想加一个侧边字母快速索引,像原生通讯录那样一滑到“A”,列表直接定位。HarmonyOS ArkTS 里,AlphabetIndexer 就是专门解决这个需求的神器。本指南带你从0上手,掌握各种常用用法和进阶技巧。

1. AlphabetIndexer 是什么?适合哪些场景?

AlphabetIndexer 是侧边索引栏组件,通常配合 List、Grid 等容器使用。
典型场景有:

  • 通讯录按姓名首字母快速跳转
  • 城市、商品分类列表
  • 多级分组列表的快速定位

用它,可以让你的列表“秒到目标”,提升大长列表的可用性和高级感。

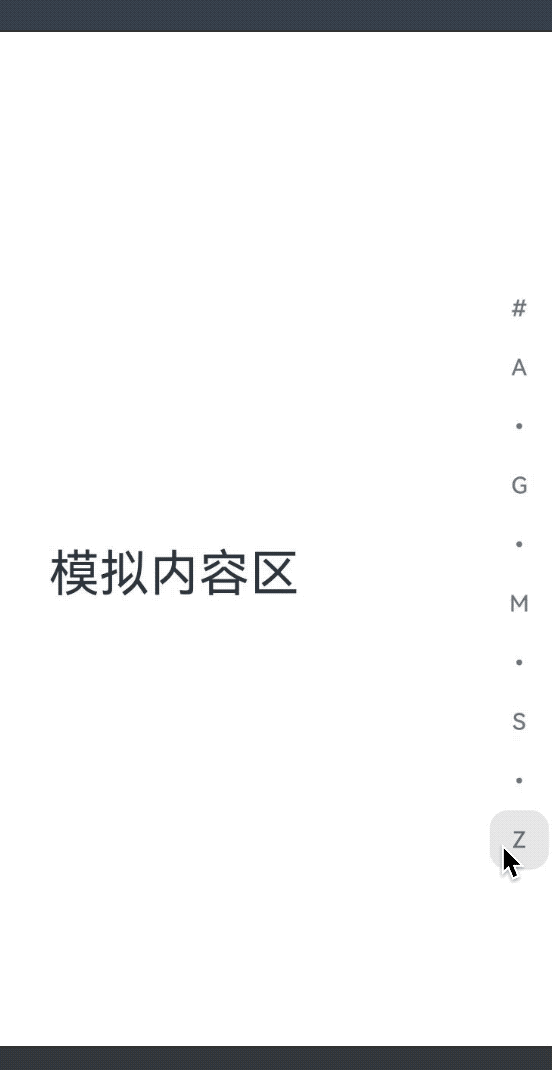

2. 最基础的写法:先跑起来再说

来看一个最简单的用法:

@Entry
@Component
struct SimpleAlphaIndexer {
  private indexList: string[] = [
    '#', 'A', 'B', 'C', 'D', 'E', 'F', 'G',
    'H', 'I', 'J', 'K', 'L', 'M', 'N',
    'O', 'P', 'Q', 'R', 'S', 'T', 'U',
    'V', 'W', 'X', 'Y', 'Z'
  ]
  @State selectedIndex: number = 0

  build() {
    Row() {
      // 假装这里是列表
      Column() {
        Text('模拟内容区').fontSize(22).margin(20)
      }.width('75%')

      // 侧边索引
      AlphabetIndexer({ arrayValue: this.indexList, selected: this.selectedIndex })
        .height('60%')
        .width('auto')
        .selectedColor(0xFF007DFF)         // 选中项颜色
        .color(0x99182431)                 // 未选中项颜色
        .itemSize(26)                      // 每个字母的高度
        .selectedBackgroundColor(0x1A007DFF)
        .usingPopup(true)                  // 开启提示弹窗
        .popupBackground(0xFAFAFA)
        .onSelect((index: number) => {
          this.selectedIndex = index
          console.info(`当前选中:${this.indexList[index]}`)
          // 这里通常做滚动定位等逻辑
        })
    }.width('100%').height(480)
  }
}

#我的鸿蒙开发手记#AlphabetIndexer 自学指南-鸿蒙开发者社区
重点参数解释:

  • arrayValue:字母数组,比如常规 [‘A’, ‘B’, …, ‘Z’],加上 # 号用作其他分组
  • selected:当前选中的索引,配合双向绑定可以做定位

3. 高级玩法:联动列表+弹窗+样式定制

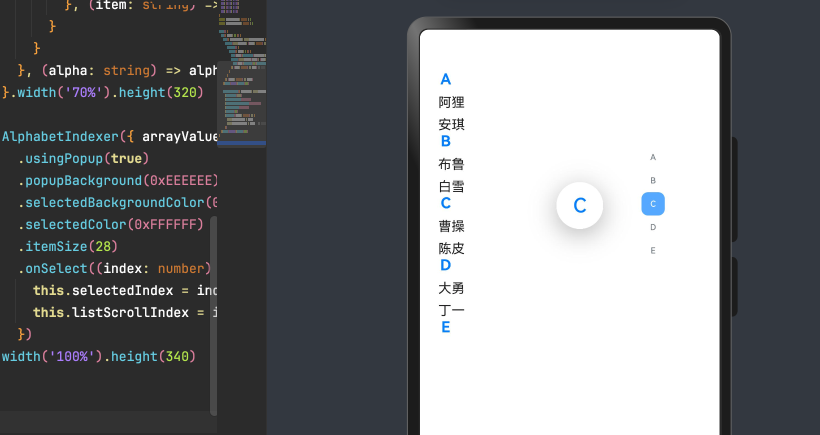

1. 和 List 联动:滑到哪跳到哪

通常用法是AlphabetIndexer和List放在同一个页面,索引点击后跳转到指定位置。你可以这样:

@Entry
@Component
struct AlphaWithList {
  private alphaArr: string[] = ['A', 'B', 'C', 'D', 'E']
  private listMap: Record<string, string[]> = {
    'A': ['阿狸', '安琪'],
    'B': ['布鲁', '白雪'],
    'C': ['曹操', '陈皮'],
    'D': ['大勇', '丁一'],
    'E': ['二狗', '尔东']
  }
  @State selectedIndex: number = 0
  @State listScrollIndex: number = 0

  build() {
    Row({ space: 10 }) {
      List({ initialIndex: this.listScrollIndex }) {
        ForEach(this.alphaArr, (alpha: string) => {
          ListItem() {
            Column({ space: 8 }) {
              Text(alpha).fontWeight(FontWeight.Bold).fontSize(18).fontColor('#007dff').margin({ left: 8 })
              ForEach(this.listMap[alpha], (item: string) => {
                Text(item).fontSize(16).fontColor('#222').margin({ left: 22 })
              }, (item: string) => item) // 明确指定 item 类型为 string
            }
          }
        }, (alpha: string) => alpha)
      }.width('70%').height(320)

      AlphabetIndexer({ arrayValue: this.alphaArr, selected: this.selectedIndex })
        .usingPopup(true)
        .popupBackground(0xEEEEEE)
        .selectedBackgroundColor(0xAA007dFF)
        .selectedColor(0xFFFFFF)
        .itemSize(28)
        .onSelect((index: number) => {
          this.selectedIndex = index
          this.listScrollIndex = index   // 切换索引,滚动到对应分组
        })
    }.width('100%').height(340)
  }
}

#我的鸿蒙开发手记#AlphabetIndexer 自学指南-鸿蒙开发者社区


2. 弹窗与二级索引:做一个更专业的效果

有些场景,比如通讯录,“L”下面有很多名字,滑动到 “L” 时可以弹窗显示更细的二级列表。你可以通过 onRequestPopupData 实现:

AlphabetIndexer({
  arrayValue: ['A', 'B', 'L'],
  selected: this.selectedIndex
})
  .usingPopup(true)
  .onRequestPopupData((index: number) => {
    if (index === 2) {
      // 比如“L”下面有很多人名
      return ['刘一', '李二', '陆三', '林四', '卢五']
    }
    return []
  })
  .onPopupSelect((popupIdx: number) => {
    // 选中了二级弹窗的第几个
    console.info(`弹窗选中:${popupIdx}`)
  })


3. 样式定制&布局技巧

AlphabetIndexer 提供丰富的属性让你做个性化美化,常用的有:

  • .itemSize():每个字母区域的高度(vp)
  • .color()/.selectedColor():未选中/选中项文本颜色
  • .selectedBackgroundColor():选中项背景色
  • .popupBackground():弹窗背景色
  • .popupFont()、.selectedFont()、.font():字体定制
  • .alignStyle(IndexerAlign.Left):弹窗出现在索引条右侧

还可以折叠显示过多字母 .autoCollapse(true)、.popupBackgroundBlurStyle(BlurStyle.COMPONENT_REGULAR) 增加模糊等效果。


4. 高级属性与性能建议

  • 宽度自适应:.width(‘auto’) 自动适配最大内容
  • 折叠模式:.autoCollapse(true),适合字母特别多的场景
  • 触觉反馈:.enableHapticFeedback(true),交互更有沉浸感
  • 弹窗模糊:.popupBackgroundBlurStyle(BlurStyle.BACKGROUND_THIN) 做出高端效果
  • 布局建议:和 List、Column、Row 组合更灵活,建议父容器先定好高度

5. 常见坑点与建议

  • 字母数组要和你的分组数据一一对应,不然滑到分组会没内容
  • 高度建议手动设置,不然 AlphabetIndexer 可能显示不完整
  • 频繁用在超长列表场景要注意性能,尽量不要和过多重渲染的大数据联动
  • 想做国际化,支持的内容不限于字母,任何分组字符串都行

小结

AlphabetIndexer 让你的列表拥有原生App的分组索引体验,适合做联系人、商品分区、城市列表等场景。
支持丰富的样式和弹窗配置,兼容双向数据绑定、国际化和折叠优化。
联动 List、Column 等容器做高效跳转,体验大幅提升。
