使用Tabs容器组件实现底部导航栏,切换内容页签。如下所示:
|
一、创建一个容器页面MainPage.ets
二、自定义tabBar组件
组件输入参数包括:导航按钮标题、选项索引、默认未选择图标、被选择图标。
@Builder
TabBuilder(title:string,index:number,selectedImg:Resource,normalImg:Resource){
Column(){
Image(this.currentIndex===index?selectedImg:normalImg)
.width(25)
.height(25)
Text(title)
.margin({top:4})
.fontSize(10)
.fontColor(this.currentIndex=== index?'#1698CE':'#6B6B6B')
}
.justifyContent( FlexAlign.Center)
.height('100%')
.width('100%')
}
三、TabContent的tabBar属性使用我们自定义的TabBuilder
TabContent() {
// TODO:添加内容页
}
.tabBar(
this.TabBuilder('首页', 0,
$r('app.media.icon_home_selected'),
$r('app.media.icon_home_normal')))

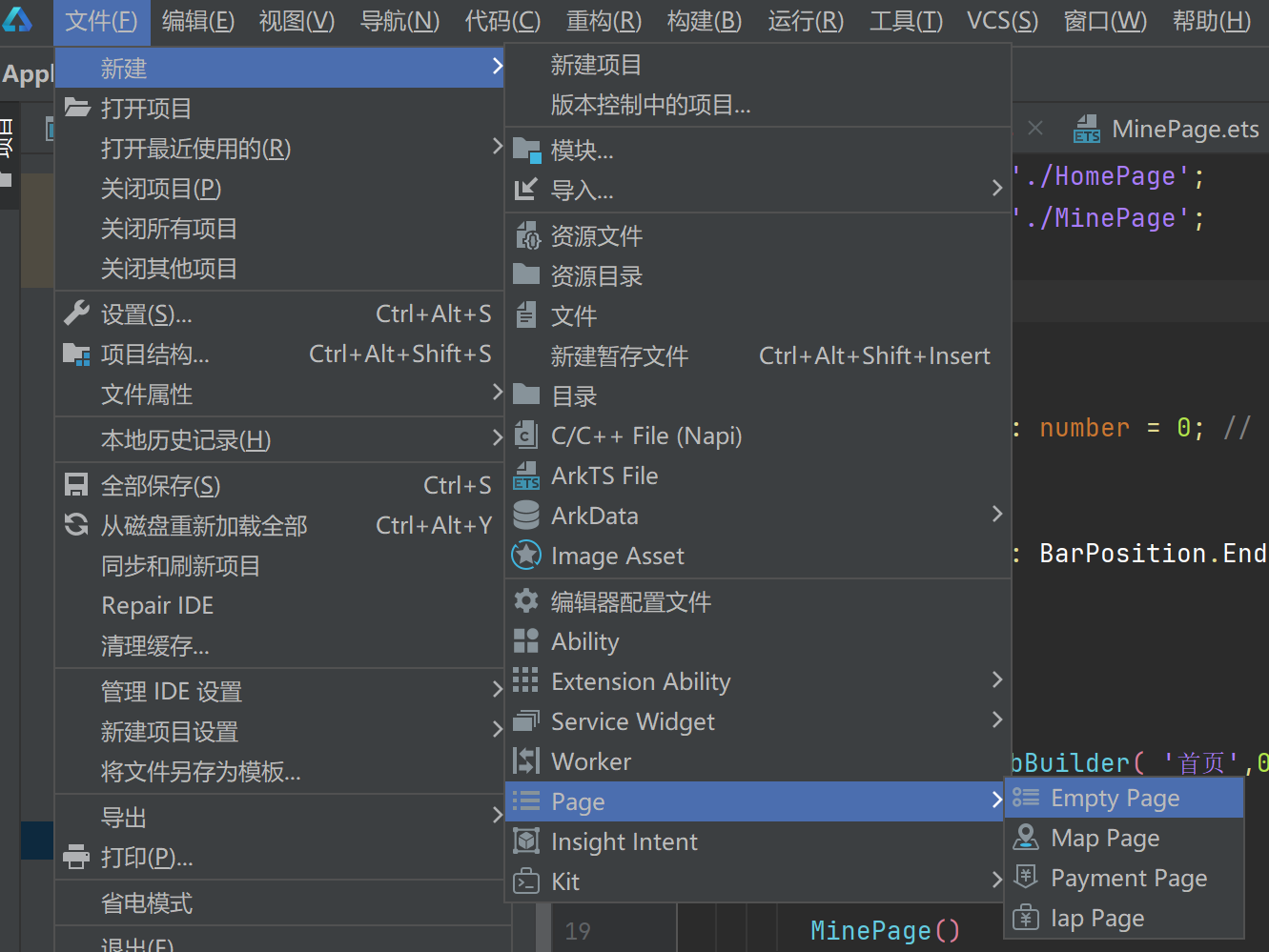

四、新建2个页面,“首页”HomePage和“我的”MinePage,作为内容页添加到TabContent(){}。
MainPage.ets文件的完整代码如下:
import HomePage from './HomePage';
import MinePage from './MinePage';
@Entry
@Component
struct MainPage {
@State currentIndex: number = 0; // 当前选中的tab索引,默认首页
build() {
Tabs({ barPosition: BarPosition.End, index: 0 }) {
TabContent() {
// TODO:添加内容页
}
.tabBar(
this.TabBuilder('首页', 0,
$r('app.media.icon_home_selected'),
$r('app.media.icon_home_normal')))
TabContent() {
// 我的
MinePage()
}
.tabBar(this.TabBuilder('我的', 1, $r('app.media.icon_mine_selected'), $r('app.media.icon_mine_normal')))
}
.vertical(false)
.backgroundColor(Color.White)
.barMode(BarMode.Fixed)
.scrollable(false)
.onChange((index: number) => {
this.currentIndex = index;
})
}
@Builder
TabBuilder(title: string, index: number, selectedImg: Resource, normalImg: Resource) {
Column() {
Image(this.currentIndex === index ? selectedImg : normalImg)
.width(25)
.height(25)
Text(title)
.margin({ top: 4 })
.fontSize(10)
.fontColor(this.currentIndex === index ? '#1698CE' : '#6B6B6B')
}
.justifyContent(FlexAlign.Center)
.height('100%')
.width('100%')
}
}
更多关于Tabs容器组件的使用,请参见官方文档:
https://developer.huawei.com/consumer/cn/doc/harmonyos-references/ts-container-tabs
