点击首页病虫害图集列表项,跳转至具体病虫害的详细信息页,内容包括:病虫害图片、农作物品名、病虫害名称、防治办法等。

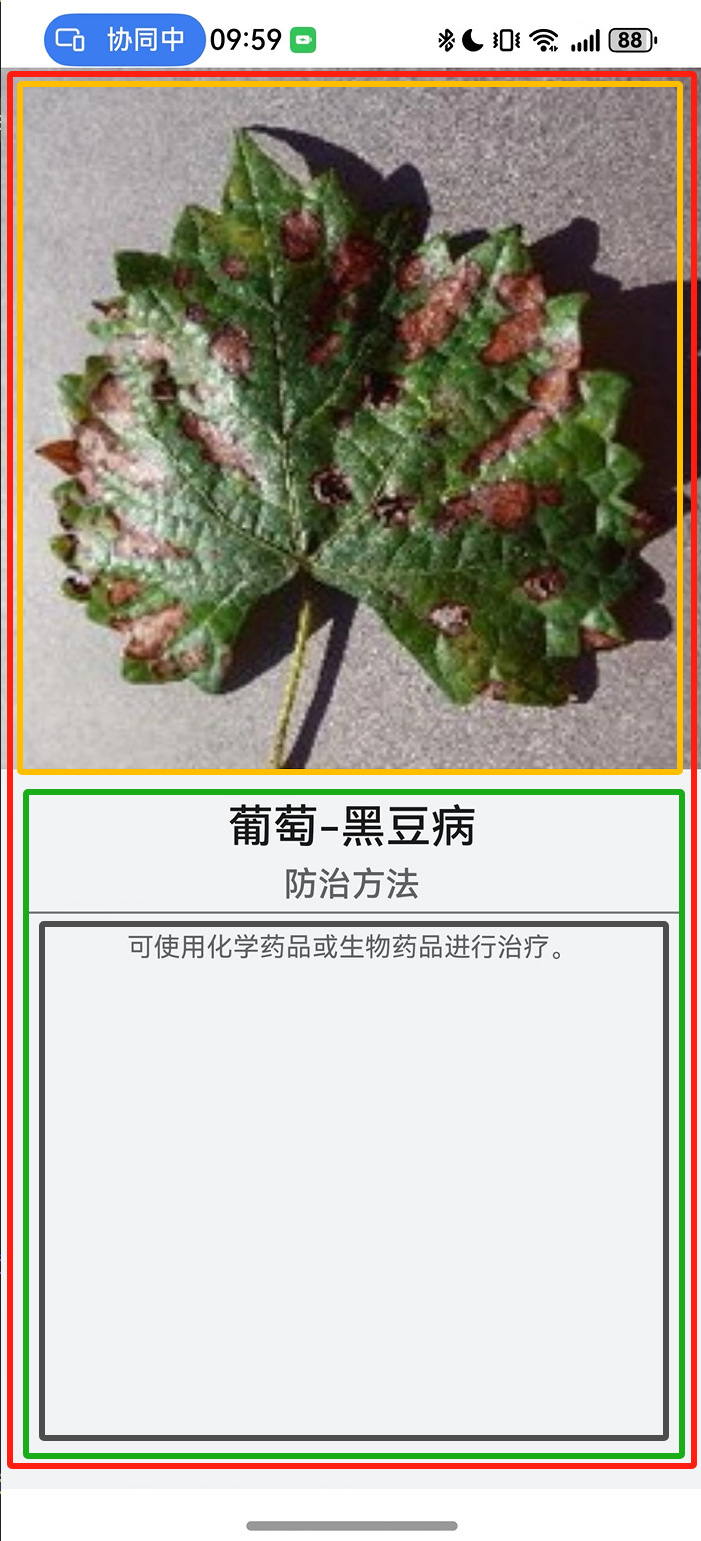

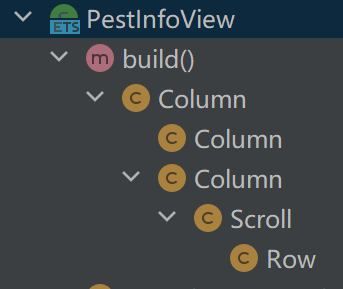

布局结构如下图所示:
|
|
在PestInfoPage.ets文件中自定义病虫害详细信息视图组件PestInfoView,代码如下:
/**
* 病虫害详细信息视图
*/
@Component
struct PestInfoView{
private pestObj?:PestModel;
private imgWidth?:number;
build() {
Column(){
// 病害图片
Column(){
Image(this.pestObj?.Img)
.width(this.imgWidth)
.objectFit(ImageFit.Contain)
.onClick(() => {
router.back();
})
}
.height('50%')
.backgroundColor($r('sys.color.ohos_id_color_sub_background'))
// 详细信息
Column(){
// 农作物名-病虫害名称
Text(this.pestObj?.Type + '-' + this.pestObj?.PestName)
.fontSize(24)
.fontWeight(FontWeight.Medium)
.margin({top:12})
.fontColor($r('sys.color.ohos_id_color_text_primary'))
// 标题
Text('防治方法')
.fontSize(18)
.fontWeight(FontWeight.Medium)
.margin({top:6})
.fontColor($r('sys.color.ohos_id_color_text_secondary'))
// 分割线
Divider()
.color($r('sys.color.ohos_id_color_card_bg'))
.borderWidth(0.25)
.margin({top:4,bottom:4})
// 具体防治描述
Scroll(){
Row(){
Text((this.pestObj?.PestCtrl !==undefined && this.pestObj?.PestCtrl?.toString()!='')
? this.pestObj?.PestCtrl
: '暂无内容')
.lineHeight(24)
.fontSize(14)
.fontColor($r('sys.color.ohos_id_color_text_secondary'))
}
.justifyContent(FlexAlign.Start)
}
.scrollBar(BarState.Off)
.layoutWeight(1)
.align(Alignment.TopStart)
}
.width('100%')
.layoutWeight(1)
.backgroundColor($r('sys.color.ohos_id_color_sub_background'))
.padding({left:12,right:12})
}
}
}
病虫害信息页面加载时,根据病虫害实体对象的属性pestname病虫名称是否空,判断是新的诊断,还是已有的病虫害,对应显示AI诊断视图或信息视图。
build() {
Column(){
if(!DataUtil.isNull(this.pestObj.PestName)){
// 已有病虫害详情
PestInfoView({pestObj:this.pestObj,imgWidth:this.imgWidth});
}else {
// 新增病虫害图片,需诊断
PestDiagnosisView({pestObj:this.pestObj,imgWidth:this.imgWidth});
}
}
}
为了宽度满屏显示病虫害图片,需要用到系统能力的设备屏幕属性display,获取当前设备的屏幕宽度,并赋值给Image.width
@State deviceWidth:number =Constants.DEVICE_DEFAULT_WIDTH;
@State imgWidth:number =this.deviceWidth;
aboutToAppear(): void {
let displayClass:display.Display=display.getDefaultDisplaySync();
let width=displayClass?.width/displayClass.densityPixels ?? Constants.DEVICE_DEFAULT_WIDTH;
this.deviceWidth=width;
this.imgWidth =this.deviceWidth;
}
屏幕属性可参加官方资料:
https://developer.huawei.com/consumer/cn/doc/harmonyos-references/js-apis-display
