HarmonyOS 组件封装

📖 目录

  1. 什么是组件封装?
  2. 为什么需要组件封装?
  3. 三种主要封装方式
  4. 公用组件封装详解
  5. 弹窗组件封装实战
  6. 组件工厂类封装进阶
  7. 最佳实践建议
  8. 常见问题解答

什么是组件封装?

在 HarmonyOS 应用开发中,组件封装就像是给常用的 UI 元素穿上一件"外套",让它们更容易重复使用。想象一下,如果你在多个页面都需要使用相同样式的按钮,与其每次都重新写一遍样式代码,不如把这个按钮封装成一个组件,需要的时候直接拿来用就行了。

🎯 核心概念

  • 封装:将相关的代码和样式打包在一起
  • 复用:一次编写,多处使用
  • 维护:统一修改,全局生效

为什么需要组件封装?

🚀 提升开发效率

假设你正在开发一个电商应用,需要在多个页面使用"加入购物车"按钮。如果不封装:

// 页面A
Button("加入购物车")
  .fontSize(16)
  .fontColor(Color.White)
  .backgroundColor("#FF6B35")
  .borderRadius(8);

// 页面B
Button("加入购物车")
  .fontSize(16)
  .fontColor(Color.White)
  .backgroundColor("#FF6B35")
  .borderRadius(8);

// 页面C... 重复代码

如果封装了组件:

// 各个页面只需要
ShoppingCartButton();

🛠️ 便于维护

当产品经理说"把所有购物车按钮的颜色改成蓝色"时,封装的组件只需要改一处,而不封装的代码需要改 N 处。

🎨 保持一致性

团队协作时,封装的组件确保所有人使用的 UI 元素都是统一的,避免了"这个按钮怎么和别的不一样"的问题。

三种主要封装方式

HarmonyOS 提供了三种主要的组件封装方式,每种都有其适用场景:

1. 🔧 公用组件封装

适用场景:需要统一样式的基础组件

举例:所有页面的主要按钮都要用相同的颜色、字体、圆角

2. 💬 弹窗组件封装

适用场景:各种自定义弹窗

举例:确认删除弹窗、信息提示弹窗、自定义表单弹窗

3. 🏭 组件工厂类封装

适用场景:需要根据参数动态创建不同组件

举例:根据数据类型显示不同的表单控件(文本框、下拉框、单选框等)

公用组件封装详解

🤔 传统方式的问题

让我们先看看传统封装方式的问题。假设我们要封装一个自定义按钮:

// ❌ 传统方式 - 问题很多
@Component
struct MyButton {
  text: string = ''
  fontSize: number = 16
  fontColor: ResourceColor = Color.White
  backgroundColor: ResourceColor = Color.Blue
  // ... 需要穷举所有Button属性

  build() {
    Button(this.text)
      .fontSize(this.fontSize)
      .fontColor(this.fontColor)
      .backgroundColor(this.backgroundColor)
      // ... 需要设置所有属性
  }
}

问题分析

  1. 参数爆炸:Button 有几十个属性,都要在 MyButton 中定义一遍
  2. 使用不便:不能像原生 Button 那样链式调用
  3. 维护困难:Button 更新了新属性,MyButton 也要跟着改

✅ AttributeModifier 解决方案

HarmonyOS 提供了AttributeModifier来优雅地解决这个问题:

方案一:提供封装好的组件

适用场景:组合多个系统组件(如图片+文字)

// 提供方:封装图片文字组合组件
@Component
export struct CustomImageText {
  @Prop imageModifier: AttributeModifier<ImageAttribute> = new ImageModifier()
  @Prop textModifier: AttributeModifier<TextAttribute> = new TextModifier()
  @Prop imageSrc: ResourceStr = ''
  @Prop text: string = ''

  build() {
    Column() {
      Image(this.imageSrc)
        .attributeModifier(this.imageModifier)

      Text(this.text)
        .attributeModifier(this.textModifier)
    }
  }
}

// 使用方:创建修饰器类
class MyImageModifier implements AttributeModifier<ImageAttribute> {
  applyNormalAttribute(instance: ImageAttribute): void {
    instance.width(100)
           .height(100)
           .borderRadius(8)
  }
}

class MyTextModifier implements AttributeModifier<TextAttribute> {
  applyNormalAttribute(instance: TextAttribute): void {
    instance.fontSize(14)
           .fontColor(Color.Gray)
           .textAlign(TextAlign.Center)
  }
}

// 使用组件
CustomImageText({
  imageSrc: $r('app.media.icon'),
  text: '商品名称',
  imageModifier: new MyImageModifier(),
  textModifier: new MyTextModifier()
})

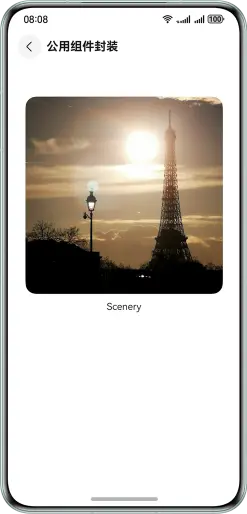

效果展示

HarmonyOS 组件封装-鸿蒙开发者社区

方案二:提供修饰器类

适用场景:单一组件的样式统一(如按钮、文本)

// 提供方:创建按钮修饰器
export class PrimaryButtonModifier
  implements AttributeModifier<ButtonAttribute>
{
  applyNormalAttribute(instance: ButtonAttribute): void {
    instance
      .fontSize(16)
      .fontColor(Color.White)
      .backgroundColor("#007AFF")
      .borderRadius(8)
      .padding({ left: 20, right: 20, top: 10, bottom: 10 });
  }
}

// 使用方:直接使用
Button("确认").attributeModifier(new PrimaryButtonModifier());

Button("取消")
  .attributeModifier(new PrimaryButtonModifier())
  .backgroundColor(Color.Gray); // 还可以继续链式调用覆盖样式

🎯 选择建议

  • 单一组件(Button、Text 等)→ 选择方案二
  • 组合组件(图片+文字、头像+昵称等)→ 选择方案一

弹窗组件封装实战

📱 应用场景

在实际开发中,我们经常需要各种弹窗:

  • 确认删除弹窗
  • 信息提示弹窗
  • 自定义表单弹窗
  • 图片预览弹窗

🔧 实现原理

使用UIContext中的PromptAction对象来管理弹窗的显示和隐藏:

// 核心流程
1. 获取 PromptAction 对象
2. 创建 ComponentContent 定义弹窗内容
3. 调用 openCustomDialog 显示弹窗
4. 调用 closeCustomDialog 关闭弹窗

💻 完整实现

第一步:创建弹窗内容

// 使用方:定义弹窗结构
@Builder
function CustomDialogBuilder() {
  Column() {
    Text('确认删除')
      .fontSize(18)
      .fontWeight(FontWeight.Bold)
      .margin({ bottom: 16 })

    Text('删除后无法恢复,确定要删除吗?')
      .fontSize(14)
      .fontColor(Color.Gray)
      .margin({ bottom: 24 })

    Row() {
      Button('取消')
        .backgroundColor(Color.Gray)
        .onClick(() => {
          DialogUtils.closeDialog()
        })

      Blank()

      Button('确认删除')
        .backgroundColor(Color.Red)
        .onClick(() => {
          // 执行删除逻辑
          console.log('执行删除')
          DialogUtils.closeDialog()
        })
    }
    .width('100%')
  }
  .padding(24)
  .backgroundColor(Color.White)
  .borderRadius(12)
}

第二步:封装弹窗工具类

// 提供方:弹窗工具类
export class DialogUtils {
  private static dialogId: string = "";

  // 显示弹窗
  static showDialog(builder: WrappedBuilder<[]>, uiContext: UIContext) {
    try {
      // 获取 PromptAction 对象
      const promptAction = uiContext.getPromptAction();

      // 创建弹窗内容
      const componentContent = new ComponentContent(uiContext, builder);

      // 显示弹窗
      this.dialogId = promptAction.openCustomDialog(componentContent, {
        alignment: DialogAlignment.Center,
        backgroundColor: "rgba(0,0,0,0.5)",
        cornerRadius: 12,
      });
    } catch (error) {
      console.error("显示弹窗失败:", error);
    }
  }

  // 关闭弹窗
  static closeDialog(uiContext: UIContext) {
    try {
      if (this.dialogId) {
        const promptAction = uiContext.getPromptAction();
        promptAction.closeCustomDialog(this.dialogId);
        this.dialogId = "";
      }
    } catch (error) {
      console.error("关闭弹窗失败:", error);
    }
  }
}

第三步:使用弹窗

@Entry
@Component
struct HomePage {
  build() {
    Column() {
      Button('显示删除确认弹窗')
        .onClick(() => {
          // 显示弹窗
          DialogUtils.showDialog(
            wrapBuilder(CustomDialogBuilder),
            this.getUIContext()
          )
        })
    }
  }
}

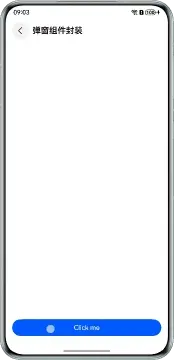

效果展示

HarmonyOS 组件封装-鸿蒙开发者社区

🎨 进阶用法

你还可以创建更通用的弹窗:

// 通用确认弹窗
static showConfirmDialog(
  title: string,
  message: string,
  onConfirm: () => void,
  uiContext: UIContext
) {
  @Builder
  function ConfirmDialogBuilder() {
    Column() {
      Text(title).fontSize(18).fontWeight(FontWeight.Bold)
      Text(message).fontSize(14).fontColor(Color.Gray)

      Row() {
        Button('取消').onClick(() => DialogUtils.closeDialog(uiContext))
        Button('确认').onClick(() => {
          onConfirm()
          DialogUtils.closeDialog(uiContext)
        })
      }
    }.padding(24)
  }

  this.showDialog(wrapBuilder(ConfirmDialogBuilder), uiContext)
}

组件工厂类封装进阶

🏭 什么是组件工厂?

组件工厂就像一个"组件生产车间",你告诉它你要什么类型的组件,它就给你生产出来。这在动态 UI 场景中特别有用。

📋 应用场景

想象你在开发一个表单生成器,根据配置数据动态生成不同的表单控件:

[
  { "type": "input", "label": "姓名", "placeholder": "请输入姓名" },
  { "type": "radio", "label": "性别", "options": ["男", "女"] },
  { "type": "checkbox", "label": "爱好", "options": ["读书", "运动", "音乐"] }
]

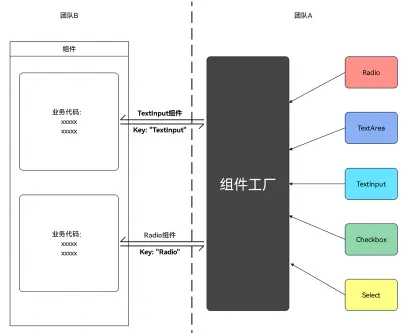

🔧 实现原理

使用Map结构存储组件,@Builder装饰器创建组件,wrapBuilder函数包装组件:

组件名(key) → WrappedBuilder对象(value) → 实际组件

💻 完整实现

第一步:创建各种组件

// 提供方:定义各种表单组件

// 文本输入框组件
@Builder
function InputBuilder() {
  TextInput({ placeholder: '请输入内容' })
    .width('100%')
    .height(40)
    .borderRadius(4)
    .border({ width: 1, color: Color.Gray })
}

// 单选框组件
@Builder
function RadioBuilder() {
  Row() {
    Radio({ value: 'option1', group: 'radioGroup' })
      .checked(false)
    Text('选项1').margin({ left: 8 })

    Radio({ value: 'option2', group: 'radioGroup' })
      .checked(false)
      .margin({ left: 20 })
    Text('选项2').margin({ left: 8 })
  }
}

// 复选框组件
@Builder
function CheckboxBuilder() {
  Column() {
    Row() {
      Checkbox().select(false)
      Text('选项A').margin({ left: 8 })
    }.margin({ bottom: 8 })

    Row() {
      Checkbox().select(false)
      Text('选项B').margin({ left: 8 })
    }
  }
}

// 按钮组件
@Builder
function ButtonBuilder() {
  Button('提交')
    .width('100%')
    .height(44)
    .backgroundColor('#007AFF')
    .borderRadius(4)
}

第二步:创建组件工厂

// 提供方:组件工厂类
export class ComponentFactory {
  private static componentMap: Map<string, WrappedBuilder<[]>> = new Map([
    ["input", wrapBuilder(InputBuilder)],
    ["radio", wrapBuilder(RadioBuilder)],
    ["checkbox", wrapBuilder(CheckboxBuilder)],
    ["button", wrapBuilder(ButtonBuilder)],
  ]);

  // 获取组件
  static getComponent(componentType: string): WrappedBuilder<[]> | undefined {
    return this.componentMap.get(componentType);
  }

  // 获取所有可用组件类型
  static getAvailableTypes(): string[] {
    return Array.from(this.componentMap.keys());
  }

  // 注册新组件
  static registerComponent(type: string, builder: WrappedBuilder<[]>) {
    this.componentMap.set(type, builder);
  }
}

第三步:使用组件工厂

// 使用方:动态表单页面
@Entry
@Component
struct DynamicFormPage {
  @State formConfig: Array<{type: string, label: string}> = [
    { type: 'input', label: '姓名' },
    { type: 'radio', label: '性别' },
    { type: 'checkbox', label: '爱好' },
    { type: 'button', label: '' }
  ]

  build() {
    Column() {
      Text('动态表单示例')
        .fontSize(20)
        .fontWeight(FontWeight.Bold)
        .margin({ bottom: 20 })

      // 动态生成表单项
      ForEach(this.formConfig, (item: {type: string, label: string}) => {
        Column() {
          if (item.label) {
            Text(item.label)
              .fontSize(16)
              .alignSelf(ItemAlign.Start)
              .margin({ bottom: 8 })
          }

          // 🎯 关键代码:从工厂获取组件
          this.buildComponent(item.type)
        }
        .width('100%')
        .margin({ bottom: 16 })
      })
    }
    .padding(20)
    .width('100%')
    .height('100%')
  }

  @Builder
  buildComponent(componentType: string) {
    const component = ComponentFactory.getComponent(componentType)
    if (component) {
      component.builder()
    } else {
      Text(`未知组件类型: ${componentType}`)
        .fontColor(Color.Red)
    }
  }
}

效果展示

HarmonyOS 组件封装-鸿蒙开发者社区

🚀 进阶技巧

1. 带参数的组件工厂

// 支持参数的组件
@Builder
function ParameterInputBuilder(config: {placeholder: string, maxLength: number}) {
  TextInput({ placeholder: config.placeholder })
    .maxLength(config.maxLength)
    .width('100%')
}

// 工厂方法支持参数
static getComponentWithParams(
  componentType: string,
  params: any
): WrappedBuilder<[any]> | undefined {
  // 根据类型和参数返回对应组件
}

2. 组件注册机制

// 支持运行时注册新组件
ComponentFactory.registerComponent(
  "custom-input",
  wrapBuilder(CustomInputBuilder)
);

⚠️ 注意事项

  1. wrapBuilder 限制:只支持全局@Builder 方法
  2. 使用限制:WrappedBuilder 的 builder 方法只能在 struct 内部使用
  3. 性能考虑:避免在循环中频繁创建 WrappedBuilder 对象

最佳实践建议

🎯 选择合适的封装方式

场景 推荐方案 理由
统一按钮样式 AttributeModifier 方案二 简单直接,保持链式调用
卡片组件(图片+文字) AttributeModifier 方案一 组合多个组件
各种弹窗 PromptAction 封装 统一管理,易于维护
动态表单 组件工厂 根据数据动态生成

📝 命名规范

// ✅ 好的命名
PrimaryButtonModifier; // 主要按钮修饰器
ConfirmDialogBuilder; // 确认弹窗构建器
FormComponentFactory; // 表单组件工厂

// ❌ 不好的命名
Modifier1; // 不知道是什么
Dialog; // 太泛化
Factory; // 不知道生产什么

🗂️ 文件组织

src/
├── components/           # 组件目录
│   ├── common/          # 公用组件
│   │   ├── modifiers/   # 修饰器
│   │   ├── dialogs/     # 弹窗
│   │   └── factories/   # 工厂
│   └── business/        # 业务组件
└── utils/               # 工具类
    └── DialogUtils.ets  # 弹窗工具

🔄 版本管理

// 为组件添加版本信息
export class PrimaryButtonModifier {
  static readonly VERSION = "1.0.0";

  applyNormalAttribute(instance: ButtonAttribute): void {
    // 实现代码
  }
}

📚 文档注释

/**
 * 主要按钮修饰器
 * @description 用于统一应用中主要按钮的样式
 * @example
 * Button('确认')
 *   .attributeModifier(new PrimaryButtonModifier())
 * @version 1.0.0
 * @author 张三
 */
export class PrimaryButtonModifier
  implements AttributeModifier<ButtonAttribute> {
  // 实现代码
}

常见问题解答

❓ Q1: AttributeModifier 和传统封装有什么区别?

A1: 主要区别在于使用方式和灵活性:

// 传统方式
MyButton({ text: "确认", fontSize: 16, color: Color.Blue });

// AttributeModifier方式
Button("确认").attributeModifier(new PrimaryButtonModifier()).fontSize(18); // 还可以继续链式调用

AttributeModifier 保持了原生组件的链式调用特性,更加灵活。

❓ Q2: 什么时候使用组件工厂?

A2: 当你需要根据数据动态决定显示什么组件时:

// 适合用工厂的场景
const formItems = [
  { type: "input", label: "姓名" },
  { type: "select", label: "城市" },
  { type: "date", label: "生日" },
];

// 不适合用工厂的场景
// 固定的UI布局,不需要动态变化

❓ Q3: 弹窗封装后如何传递数据?

A3: 可以通过闭包或者全局状态管理:

// 方式1:闭包传递
static showEditDialog(userData: UserData, onSave: (data: UserData) => void) {
  @Builder
  function EditDialogBuilder() {
    // 可以访问userData和onSave
  }

  this.showDialog(wrapBuilder(EditDialogBuilder), uiContext)
}

// 方式2:全局状态
@Observed
class DialogState {
  userData: UserData = new UserData()
}

❓ Q4: 组件封装会影响性能吗?

A4: 合理的封装不会显著影响性能,反而有助于优化:

// ✅ 好的做法:复用组件实例
class ButtonModifierPool {
  private static instance = new PrimaryButtonModifier();

  static getInstance() {
    return this.instance;
  }
}

// ❌ 避免:频繁创建新实例
Button("确认").attributeModifier(new PrimaryButtonModifier()); // 每次都创建新实例

❓ Q5: 如何处理组件的主题切换?

A5: 可以在修饰器中根据主题状态动态设置样式:

export class ThemeButtonModifier implements AttributeModifier<ButtonAttribute> {
  applyNormalAttribute(instance: ButtonAttribute): void {
    const isDarkMode = AppStorage.get("isDarkMode") || false;

    instance
      .fontSize(16)
      .fontColor(isDarkMode ? Color.White : Color.Black)
      .backgroundColor(isDarkMode ? "#333333" : "#FFFFFF");
  }
}

总结

通过本文的学习,你应该已经掌握了 HarmonyOS 中三种主要的组件封装方式:

  1. 公用组件封装:使用 AttributeModifier 优雅地扩展系统组件
  2. 弹窗组件封装:使用 PromptAction 统一管理各种弹窗
  3. 组件工厂封装:使用 Map 和@Builder 实现动态组件生成

🎯 关键要点

  • 选择合适的方案:根据具体场景选择最适合的封装方式
  • 保持一致性:统一的命名规范和代码风格
  • 注重复用:一次封装,多处使用
  • 便于维护:良好的文档和版本管理

🚀 下一步

  • 尝试在你的项目中应用这些封装技巧
  • 建立团队的组件库规范
  • 探索更多高级封装模式

希望这篇文章能帮助你更好地理解和应用 HarmonyOS 的组件封装技术!如果有任何问题,欢迎在评论区讨论。

©著作权归作者所有,如需转载,请注明出处,否则将追究法律责任
分类
标签
收藏
回复
举报
回复
    相关推荐
