OpenHarmony的allinone.bin固件格式解析 原创
再见南丫岛
发布于 2022-3-22 17:35
浏览
2收藏

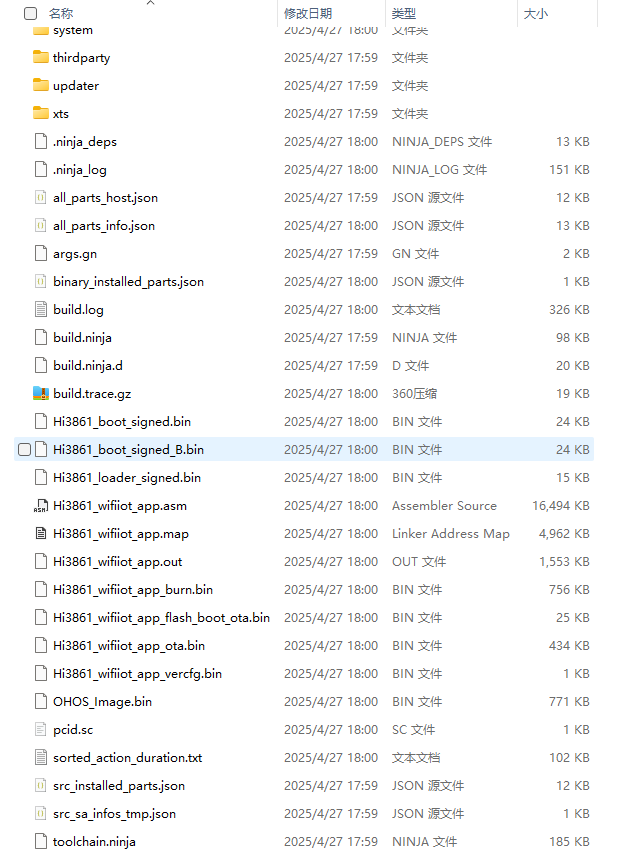

在开发完Hi3861的固件之后,需要对固件进行烧录。官方推荐直接使用allinone.bin固件。通过HiBurn软件加载该固件之后,会解析出三个bin文件。猜测allinone.bin中包含了这三个固件,以及一些配置参数。
带着这个猜测,分析了一下openharmony关于编译部分的代码。在build\scripts目录下发现了packet_create.py文件。
device\hisilicon\hispark_pegasus\sdk_liteos\build\scripts\packet_create.py
于是与源码对比分析,发现确实该文件是打包的py文件。
def packet_bin(outputPath, inputList):
pathList = []
burnAddrList = []
burnSizeList = []
imageSizeList = []
typeList = []
for item in inputList:
path, burnAddr, burnSize, type = item.split("|")
imageSize = os.path.getsize(path)
pathList.append(path)
burnAddrList.append(int(burnAddr))
burnSizeList.append(int(burnSize))
imageSizeList.append(imageSize)
typeList.append(int(type))
print(pathList)
print(burnAddrList)
print(burnSizeList)
print(imageSizeList)
print(typeList)
flag = 0xefbeaddf
print(flag)
crc = 0
imageNum = len(pathList)
headLen = imageNum*52 + 12
totalFileSize = sum(imageSizeList) + headLen
with open(outputPath, 'wb+') as file:
file.write(struct.pack('IHHI', flag, crc, imageNum, totalFileSize))
startIndex = headLen
times = 0
for path in pathList:
pathName = os.path.basename(path)
file.write(
struct.pack('32sIIIII', bytes(pathName, 'ascii'), startIndex, imageSizeList[times], burnAddrList[times],
burnSizeList[times], typeList[times]))
startIndex = startIndex + imageSizeList[times] + 16
times += 1
for path in pathList:
with open(path, 'rb+') as subfile:
data = subfile.read()
file.write(data)
file.write(struct.pack('IIII', 0, 0, 0, 0))
file.flush()
file.seek(6)
newdata = file.read(headLen - 6)
crc16 = t.crcb(newdata)
file.seek(4)
file.write(struct.pack('H', crc16))
allinone.bin文件内容分为两部分,数据头和帧内容。
以上为数据头内容。对比python的代码,可以分析出数据头中包含的内容为
名称 | 类型 | 内容 |
---|---|---|
标志头 | unsigned int | 0xefbeaddf |
CRC | unsigned short | – |
镜头个数 | unsigned short | 3 |
文件大小 | unsigned int | – |
文件名 | 字符串32s | Hi3861_loader_signed.bin |
索引地址 | unsigned int | – |
文件大小 | unsigned int | – |
Burn地址 | unsigned int | – |
xx | unsigned int | – |
xx | unsigned int | – |
文件名 | 字符串32s | Hi3861_wifiiot_app_burn.bin |
索引地址 | unsigned int | – |
文件大小 | unsigned int | – |
Burn地址 | unsigned int | – |
xx | unsigned int | – |
xx | unsigned int | – |
文件名 | 字符串32s | Hi3861_boot_signed_B.bin |
索引地址 | unsigned int | – |
文件大小 | unsigned int | – |
Burn地址 | unsigned int | – |
xx | unsigned int | – |
xx | unsigned int | – |
数据内容既对应文件的内容,然后每个文件后面有16个字节的0x00作为分割。
分析这个文件的原因是希望可以自己开发一个HiBurn工具,这样可以更加灵活的实现固件的烧录。后续会对HiBurn的工作原理,协议交互逻辑进行分析。
