1. 渲染-条件渲染

在ArkTS中我们要根据某个状态来控制元素或者组件的显示隐藏可以采用条件渲染。

● if/else（创建销毁元素）

●元素高宽-透明度-位置控制（属性控制）

● visibility属性控制

使用if/else。

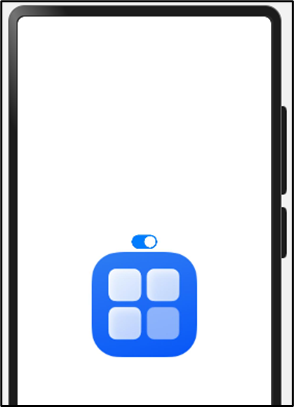

通过一个switch开关来控制图片的显示隐藏。

HarmonyOS界面渲染-鸿蒙开发者社区

代码如下：

@Entry
@Component
struct Index {
  @State showImg: boolean = false

  build() {
    Row() {
      Column() {
        Toggle({
          type: ToggleType.Switch,
          isOn: this.showImg
        })
          .onChange((isON) => {
            this.showImg = isON
          })
        if(this.showImg) {
          Image('/assets/startIcon.png')
            .width(150)
            .height(150)
        }
      }
      .width('100%')
    }
    .width('100%')
    .height('100%')
  }
}1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.

多种条件控制

interface  ICity{
  value: string
}

export class ICityModel implements ICity {
  value: string = ''

  constructor(model: ICity) {
    this.value = model.value
  }
}


@Entry
@Component
struct IfElseCase {

  @State
  cityList: ICityModel[] = [
    new ICityModel({value: '北京'}),
    new ICityModel({value: '广州'}),
    new ICityModel({value: '深圳'}),
    new ICityModel({value: '上海'}),
  ]

  @State
  selectIndex:number = 0

  build() {
    Row(){
      Select(this.cityList)
        .value(this.cityList[this.selectIndex].value)
        .onSelect(index => {
          this.selectIndex = index
        })

      if( this.selectIndex == 0){
        Text('北京')
      }else if (this.selectIndex == 1){
        Text('广州')
      }else if( this.selectIndex == 2){
        Text('深圳')
      }else{
        Text('上海')
      }
    }
    .width('100%')
    .height('100%')
  }
}1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.

运行结果：

HarmonyOS界面渲染-鸿蒙开发者社区

控制元素高宽。

Image($r('app.media.startIcon.png'))
        .width(this.isOn ? 100 : 0)
        .height(this.isOn ? 100 : 0)
        .borderRadius(8)1.
2.
3.
4.

控制visibility属性- Hidden和None两种。

'))
        .width(100)
        .height(100)
        .borderRadius(8)
        .visibility(this.isOn ? Visibility.Visible: Visibility.Hidden)

'))
        .width(100)
        .height(100)
        .borderRadius(8)
        .visibility(this.isOn ? Visibility.Visible: Visibility.None)1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.

visibility的Hidden会占位，元素隐藏，Node隐藏且不占位。

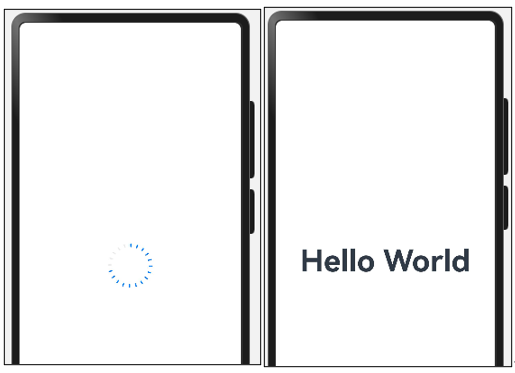

案例-实现加载数据的loading效果。

在页面加载后，三秒钟之后才显示数据，之前显示loading进度条。

HarmonyOS界面渲染-鸿蒙开发者社区

封装loading组件。

代码如下：

@Entry
@Component
struct LoadingCase {
  @State message: string = 'Hello World'
  @State showLoading: boolean = false
  // 初始化执行的回调函数
  aboutToAppear() {
    this.showLoading = true
    setTimeout(() => {
      this.showLoading = false
    }, 3000)
  }

  build() {
    Row() {
      Column() {
        if(this.showLoading) {
          HmLoading()
        }else {
          Text(this.message)
            .fontSize(50)
            .fontWeight(FontWeight.Bold)
        }
      }
      .width('100%')
    }
    .height('100%')
  }
}

@Component
struct HmLoading {
  @State count: number = 0

  aboutToAppear() {
    setInterval(() => {
      if(this.count  === 100) {
        this.count = 0
      }
      this.count++
    }, 10)
  }
  build() {
    Progress({
      value: this.count,
      total: 100,
      type: ProgressType.ScaleRing
    }).style({
      strokeWidth: 6,
      scaleCount: 20,
    })
  }
}1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.

2. 渲染-循环渲染

循环渲染使用 ForEach方法来进行。

ForEach 接口基于数组类型数据来进行循环渲染，需要与容器组件配合使用。

ForEach(
  // 数据源
  arr: Array,
  // 组件生成函数
  itemGenerator: (item: Array, index?: number)=> void,
  // 键值生成函数
  keyGenerator?: (item: Array, index?: number):string => string
)1.
2.
3.
4.
5.
6.
7.
8.

例如购物商城的网站

HarmonyOS界面渲染-鸿蒙开发者社区

新建一个 IGoodsItem 类型数据，进行循环。

interface IGoodsItem {
  id: number
  store_name: string
  image: string
  isSelected: boolean
  sku: string
  price: number
  cart_num: number
}
export class IGoodsItemModelimplements IGoodsItem {
  id: number = 0
  store_name: string = ''
  image: string = ''
  isSelected: boolean = false
  sku: string = ''
  price: number = 0
  cart_num: number = 0

  constructor(model: IGoodsItem) {
    this.id = model.id
    this.store_name = model.store_name
    this.image = model.image
    this.isSelected = model.isSelected
    this.sku = model.sku
    this.price = model.price
    this.cart_num = model.cart_num
  }
}1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.

声明数据

@State
  cartList: IGoodsItemModel[] = [
    new IGoodsItemModel({
      id: 1,
      store_name: 'Apple MacBook Air 13.3 新款8核M1芯片(7核图形处理器) 8G 256G SSD 银色笔记本电脑
      image:'http://106.52.75.114/uploads/attach/2023/06/20230625/small_c6fe8fcd0d93751037ff443ffc31854c.png',
      isSelected: false,
      sku: '金色,新款八核M1芯片8G 256G',
      price: 719.9,
      cart_num: 2,
    }),
    new IGoodsItemModel({
      id: 2,
      store_name: 'Apple MacBook Air 13.3 新款8核M1芯片(7核图形处理器) 8G 256G SSD 银色笔记本电脑
      image:'http://106.52.75.114/uploads/attach/2023/06/20230625/small_c5fc73a69789277fe45c989d14e98d9f.jpg',
      isSelected: true,
      sku: '银色,新款八核M1芯片16G 256G',
      price: 822.5,
      cart_num: 4,
    }),
    new IGoodsItemModel({
      id: 3,
      store_name: '麦穗抓夹优雅气质大号发夹女后脑勺夹子头饰春夏季鲨鱼夹',
      image:'http://106.52.75.114/uploads/attach/2023/06/20230607/small_2a033d103871eec4a3bdc4d4ad5f7b3b.jpg',
      isSelected: false,
      sku: '默认',
      price: 289,
      cart_num: 3,
    }),
    new IGoodsItemModel({
      id: 4,
      store_name: '9999足银满天星手镯可拉伸实心纯银镯子手环女友闺蜜生日礼物',
      image:'http://106.52.75.114/uploads/attach/2023/06/20230607/small_6076b07eeb8097e8a02796baa7cbb6fc.jpg',
      isSelected: true,
      sku: '默认',
      price: 321,
      cart_num: 96,
    })
  ]1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.

使用 ForEach 遍历

代码如下：

interface IGoodsItem {
  id: number
  store_name: string
  image: string
  isSelected: boolean
  sku: string
  price: number
  cart_num: number
}
export class IGoodsItemModel implements IGoodsItem {
  id: number = 0
  store_name: string = ''
  image: string = ''
  isSelected: boolean = false
  sku: string = ''
  price: number = 0
  cart_num: number = 0

  constructor(model: IGoodsItem) {
    this.id = model.id
    this.store_name = model.store_name
    this.image = model.image
    this.isSelected = model.isSelected
    this.sku = model.sku
    this.price = model.price
    this.cart_num = model.cart_num
  }
}
@Entry
@Component
struct LoopCase {
  @State
  cartList: IGoodsItemModel[] = [
    new IGoodsItemModel({
      id: 1,
      store_name: 'Apple MacBook Air 13.3 新款8核M1芯片(7核图形处理器) 8G 256G SSD 银色 笔记本电脑 MGN93CH/A',
      image: 'http://106.52.75.114/uploads/attach/2023/06/20230625/small_c6fe8fcd0d93751037ff443ffc31854c.png',
      isSelected: false,
      sku: '金色,新款八核M1芯片8G 256G',
      price: 719.9,
      cart_num: 2,
    }),
    new IGoodsItemModel({
      id: 2,
      store_name: 'Apple MacBook Air 13.3 新款8核M1芯片(7核图形处理器) 8G 256G SSD 银色 笔记本电脑 MGN93CH/A',
      image: 'http://106.52.75.114/uploads/attach/2023/06/20230625/small_c5fc73a69789277fe45c989d14e98d9f.jpg',
      isSelected: true,
      sku: '银色,新款八核M1芯片16G 256G',
      price: 822.5,
      cart_num: 4,
    }),
    new IGoodsItemModel({
      id: 3,
      store_name: '麦穗抓夹优雅气质大号发夹女后脑勺夹子头饰春夏季鲨鱼夹',
      image: 'http://106.52.75.114/uploads/attach/2023/06/20230607/small_2a033d103871eec4a3bdc4d4ad5f7b3b.jpg',
      isSelected: false,
      sku: '默认',
      price: 289,
      cart_num: 3,
    }),
    new IGoodsItemModel({
      id: 4,
      store_name: '9999足银满天星手镯可拉伸实心纯银镯子手环女友闺蜜生日礼物',
      image: 'http://106.52.75.114/uploads/attach/2023/06/20230607/small_6076b07eeb8097e8a02796baa7cbb6fc.jpg',
      isSelected: true,
      sku: '默认',
      price: 321,
      cart_num: 96,
    })
  ]


  build() {
    Column(){
      ForEach(this.cartList, (item: IGoodsItemModel) => {
        Row(){
          Image(item.image)
            .width(100)
            .height(100)
            .borderRadius(10)

          Text(item.store_name).maxLines(1).textOverflow({overflow: TextOverflow.Ellipsis}).layoutWeight(1).margin({left: 10})
        }
        .margin({bottom: 10})
        .justifyContent(FlexAlign.SpaceBetween)
        .width('100%')
      })
    }
    .width('100%')
    .height('100%')
  }
}1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
