每台机器都要部署nginx

1.前提：k8s相关服务必须安装完

关闭每台机器防火墙,postfix，selinux，swap

systemctl disable postfix && systemctl stop postfix
setenforce 0 && sed -i "s/^SELINUX=enforcing/SELINUX=disabled/g" /etc/selinux/config
swapoff -a && sed -i 's/.*swap.*/#&/' /etc/fstab

1.
2.
3.
4.

修改k8s文件，将桥接的IPv4流量传递到iptables的链


cat > /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
# 生效
sysctl --system
1.
2.
3.
4.
5.
6.
7.

安装配置docker

mkdir -p /etc/docker/

vim /etc/docker/daemon.json
#添加如下配置
{
    "hosts":[
        "tcp://0.0.0.0:9998",
        "unix:///var/run/docker.sock"
    ],
    "insecure-registries":["192.168.146.101:5005"],
    "registry-mirrors": ["https://b9pmyelo.mirror.aliyuncs.com"]
}
yum install -y yum-utils


yum-config-manager --add-repo https://mirrors.tuna.tsinghua.edu.cn/docker-ce/linux/centos/docker-ce.repo


yum install -y docker-ce docker-ce-cli containerd.io

systemctl enable docker && systemctl start docker
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.

配置kubernetes源

vim /etc/yum.repos.d/kubernetes.repo
#添加如下配置
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
1.
2.
3.
4.
5.
6.
7.
8.
9.

安装kubeadm，kubelet和kubectl

yum install -y kubelet-1.18.6 kubeadm-1.18.6 kubectl-1.18.6

systemctl enable kubelet

1.
2.
3.
4.

k8s三台master部署

10.0.0.128

10.0.0.215

10.0.0.29

重新生成新的api-server证书

在master节点下执行下列操作：


# 导出线上kubeadm配置

kubectl -n kube-system get configmap kubeadm-config -o jsonpath='{.data.ClusterConfiguration}' > kubeadm.yaml


1.
2.
3.
4.
5.
6.

#云原生征文#k8s高可用三台master部署图文并茂-鸿蒙开发者社区

增加apiServer参数certSANs


apiServer:

certSANs:

- localhost

- 10.

- 10.

- 10.

- hw-

- hw-

- hw-

extraArgs:

authorization-mode: Node,RBAC

timeoutForControlPlane: 4m0s

apiVersion: kubeadm.k8s.io/v1beta2

certificatesDir: /etc/kubernetes/pki

clusterName: kubernetes

controllerManager: {}

dns:

type: CoreDNS

etcd:

local:

dataDir: /var/lib/etcd

imageRepository: registry.aliyuncs.com/google_containers

kind: ClusterConfiguration

kubernetesVersion: v1.18.6

networking:

dnsDomain: cluster.local

podSubnet: 10.244.0.0/16

serviceSubnet: 10.96.0.0/12

scheduler: {}

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.

更新证书


#把整个/etc/kubernetes做备份

cp -r /etc/kubernetes ~/backups



#删除老的api-server证书

rm /etc/kubernetes/pki/apiserver.{crt,key}



#直接使用 kubeadm 命令生成一个新的证书

kubeadm init phase certs apiserver --config kubeadm.yaml



#重启 APIServer 来接收新的证书，最简单的方法是直接杀死 APIServer 的容器

docker kill $(docker ps | grep kube-apiserver | grep -v pause | cut -d' ' -f1)

#验证证书

openssl x509 -in /etc/kubernetes/pki/apiserver.crt -text

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.

#云原生征文#k8s高可用三台master部署图文并茂-鸿蒙开发者社区

#将上面的集群配置信息保存到集群的 kubeadm-config 这个 ConfigMap 中去

kubeadm config upload from-file --config kubeadm.yaml

#验证是否保存成功

kubectl -n kube-system get configmap kubeadm-config -o yaml

负载均衡
k8s高可用部署已部署完k8s相关操作
在所有节点上执行如下操作：

安装组件nginx、keepalived


yum install nginx keepalived -y

1.
2.
3.

在所有节点上使用 nginx 来作为一个负载均衡器


vim /etc/kubernetes/nginx.conf

1.
2.
3.

添加如下内容


error_log stderr notice;


worker_processes 2;

worker_rlimit_nofile 130048;

worker_shutdown_timeout 10s;


events {

multi_accept on;

use epoll;

worker_connections 16384;

}


stream {

upstream kube_apiserver {

least_conn;

server 10.4.46.215:6443;

server 10.4.46.128:6443;

server 10.4.46.29:6443;

}


server {

listen 8443;

proxy_pass kube_apiserver;

proxy_timeout 10m;

proxy_connect_timeout 1s;

}

}


http {

aio threads;

aio_write on;

tcp_nopush on;

tcp_nodelay on;


keepalive_timeout 5m;

keepalive_requests 100;

reset_timedout_connection on;

server_tokens off;

autoindex off;


server {

listen 8081;

location /stub_status {

stub_status on;

access_log off;

}

}

}

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.

部署keepalived服务

yum install keepalived -y

2.更新master节点配置
**修改 kubelet 配置：**


vim /etc/kubernetes/kubelet.conf

1.
2.
3.

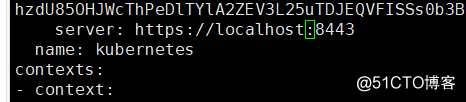

将原有的ip改成nginx的代理配置


......

server: https://localhost:8443

name: kubernetes

......
![4.png](https://dl-harmonyos.51cto.com/images/202205/419c4bd93d7fdc0993f79045b98aceb501e699.png?x-oss-process=image/resize,w_466,h_102)

![5.png](https://dl-harmonyos.51cto.com/images/202205/3645b5b516bef139eea973d08a475a2b17f157.png?x-oss-process=image/resize,w_554,h_49)


1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.

重启服务


systemctl restart kubelet

1.
2.
3.

**修改 controller-manager 配置：**


vim /etc/kubernetes/controller-manager.conf

1.
2.
3.

#云原生征文#k8s高可用三台master部署图文并茂-鸿蒙开发者社区

将原有的ip改成nginx的代理配置
#云原生征文#k8s高可用三台master部署图文并茂-鸿蒙开发者社区


......

server: https://localhost:8443

name: kubernetes

......

1.
2.
3.
4.
5.
6.
7.
8.
9.

重启服务


docker kill $(docker ps | grep kube-controller-manager | grep -v pause | cut -d' ' -f1)

1.
2.
3.

**修改 scheduler 配置：**


vim /etc/kubernetes/scheduler.conf

1.
2.
3.

将原有的ip改成nginx的代理配置


......

server: https://localhost:8443

name: kubernetes

......

1.
2.
3.
4.
5.
6.
7.
8.
9.

重启服务


docker kill $(docker ps | grep kube-scheduler | grep -v pause | cut -d' ' -f1)

1.
2.
3.

更新kube客户端配置


vim ~/.kube/config

1.
2.
3.

将原有的ip改成nginx的代理配置


......

server: https://localhost:8443

name: kubernetes

......

1.
2.
3.
4.
5.
6.
7.
8.
9.

更新 kube-proxy 配置


kubectl -n kube-system edit cm kube-proxy

1.
2.
3.

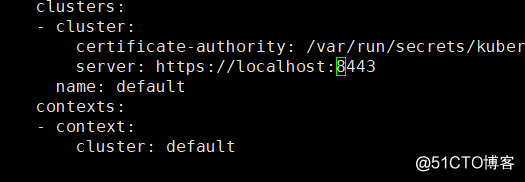

将原有的ip改成nginx的代理配置


......

kubeconfig.conf: |-

apiVersion: v1

kind: Config

clusters:

- cluster:

certificate-authority: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt

server: https://localhost:8443

name: default

......
![8.png](https://dl-harmonyos.51cto.com/images/202205/d702886337471479ebf612690302303b93239b.png?x-oss-process=image/resize,w_525,h_182)


1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.

重启各个节点的 kube-proxy
#云原生征文#k8s高可用三台master部署图文并茂-鸿蒙开发者社区

3.更新控制平面(master)配置
从集群中的 ConfigMap 中获取当前配置


kubectl -n kube-system get configmap kubeadm-config -o jsonpath='{.data.ClusterConfiguration}' > kubeadm.yaml

1.
2.
3.

#云原生征文#k8s高可用三台master部署图文并茂-鸿蒙开发者社区

然后在当前配置文件里面里面添加 controlPlaneEndpoint 属性，用于指定控制面板的负载均衡器的地址。


controlPlaneEndpoint: localhost:8443 #在首行添加该配置

1.
2.
3.

使用以下命令将其上传回集群


kubeadm config upload from-file --config kubeadm.yaml

1.
2.
3.

然后需要在 kube-public 命名空间中更新 cluster-info 这个 ConfigMap，该命名空间包含一个Kubeconfig 文件，该文件的 server: 一行指向单个控制平面节点。只需使用kubectl -n kube-public edit cm cluster-info 更新该 server: 行以指向控制平面的负载均衡器即可。

kubectl -n kube-public edit cm cluster-info
1.

将原有的ip改成nginx的代理配置
#云原生征文#k8s高可用三台master部署图文并茂-鸿蒙开发者社区


......

server: https://localhost:8443

name: ""

......

1.
2.
3.
4.
5.
6.
7.
8.
9.

更新完成就可以看到 cluster-info 的信息变成了负载均衡器的地址了。


kubectl cluster-info

1.
2.
3.

4.生成token
kubeadm init phase upload-certs --upload-certs

kubeadm token create --print-join-command --config kubeadm.yaml

5.添加master节点
kubeadm reset

rm -rf /var/lib/etcd

kubeadm join localhost:8443 --token 4pi1b4.ngn8krw0aonwpnzd --discovery-token-ca-cert-hash sha256:e94427a152103d795535f5ec783f5f4dbaf2f92419682326d8716332d493f683 --control-plane --certificate-key 653c8a46198e675bee0b7b0183049b7e9ee08a2ff567bc5c36b82c28553ad484

#云原生征文#k8s高可用三台master部署图文并茂-鸿蒙开发者社区

6.修改etcd组件配置
登录各个master节点，修改etcd配置

vim /etc/kubernetes/manifests/etcd.yaml
1.

增加所有master的连接

…

–initial-cluster=hw-prd-dtp-hue-server-10-4-46-215=https://10.4.46.215:2380,hw-prd-dtp-k8s-master-10-4-46-128=https://10.4.46.128:2380,hw-prd-dtp-k8s-master-10-4-46-29=https://10.4.46.29:2380

…
